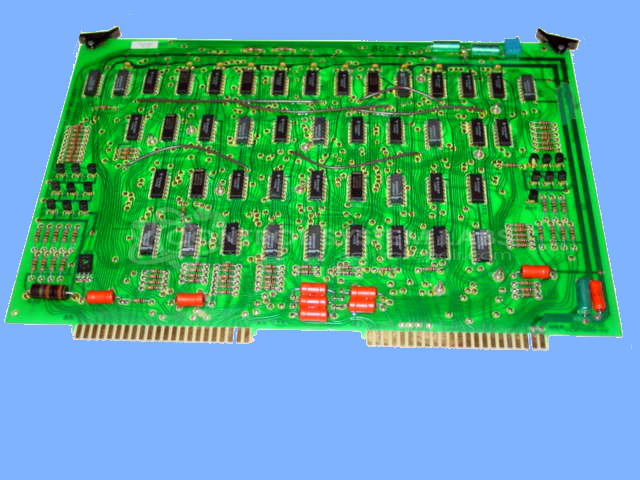

New Britain D2-900-020 Command I Clamp Module

Repair

Repair Price: $ 1,304.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/23774/image_1920?unique=792e2ec
  • Condition

Purchase Price: $ 0.00 $ 0.00 1304.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4091
Product Overview: A control module that governs the clamp functions of injection molding machines, managing clamp open/close, mold lock, ejector, and core pull sequencing through logic outputs to hydraulic solenoids. Built with CMOS 4000-series logic ICs and adjustable timing circuits for operations such as mold lock delay and cool cycle timing.
Category: Control Module
Manufacturer: New Britain
Manufacturer Synonyms: New Britain Plastics Machine, HPM, Litton
Manufacturer Part Number: D2-900-020
Series: Command I Controller

Common Failures

Common issues reported include corrosion and moisture damage that may result in inoperative boards. Symptoms may include erratic outputs, incorrect timing sequences, and failure to execute automatic functions. Problems detected during evaluation may include broken traces, corroded connections, and damaged integrated circuits.

Repair Approach

Repairs may involve cleaning to remove corrosion, replacing damaged components such as integrated circuits, resistors, and capacitors, and repairing or replacing broken traces. Sockets may be installed to facilitate component replacement. Moisture-proof coatings may be applied where appropriate.

Testing & Quality

Upon completion of repairs, boards are tested according to established procedures. Testing includes verifying functional outputs, timing sequences, and overall operational integrity. In some cases, extended burn-in tests are performed. Successfully repaired units pass testing and are verified to meet operational standards before being returned.

Service and repair your broken New Britain part


We can repair your New Britain model D2-900-020 in our facility. Let our skilled technicians get your New Britain back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
