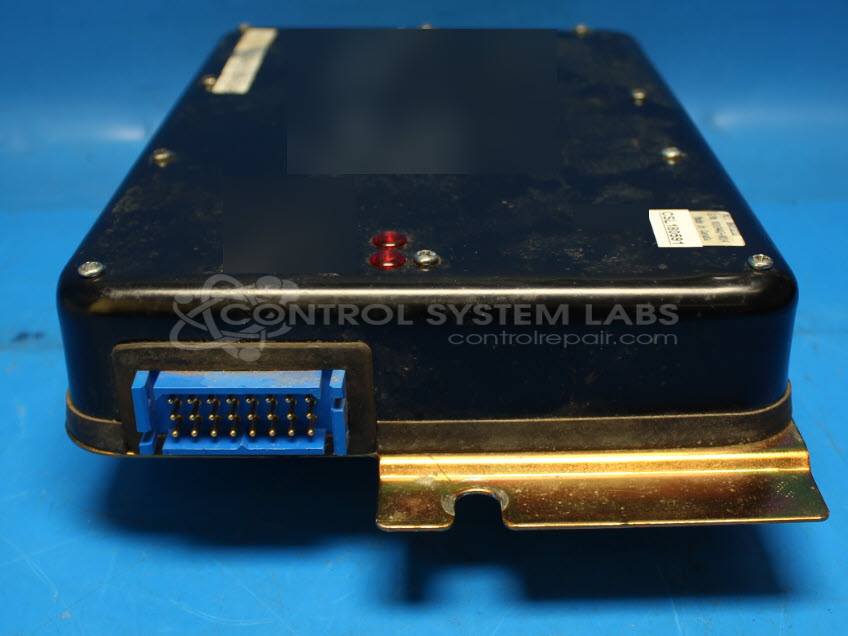

New Holland 86013233 Chassis Control Module CCM
Repair
Call for price
Purchase
CSL Part Number: 86573
Category: Control Assembly
Manufacturer: New Holland
Manufacturer Part Number: 86013233
limited Repair
Common Failures
One of the primary issues reported with this product is intermittent failure to shift, which may cause the transmission to attempt engaging both forward and reverse simultaneously. This can be due to an overheated FET driver upon power-up.
Repair Approach
Repair efforts typically involve replacing the FET driver, power supply capacitor, and switching regulator. These steps have proven effective in resolving the shifting issue by preventing overheating and related failures. During repairs, technicians thoroughly inspect for shorts or opens and verify component operation.
Testing & Quality
Post-repair, comprehensive testing is conducted including checking all FET outputs and verifying crystal frequency at 16 MHz to confirm the product's functionality and reliability. When initial problems are not verified, the applied corrective measures are typically successful.
Limited Repair
The New Holland part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your New Holland part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
