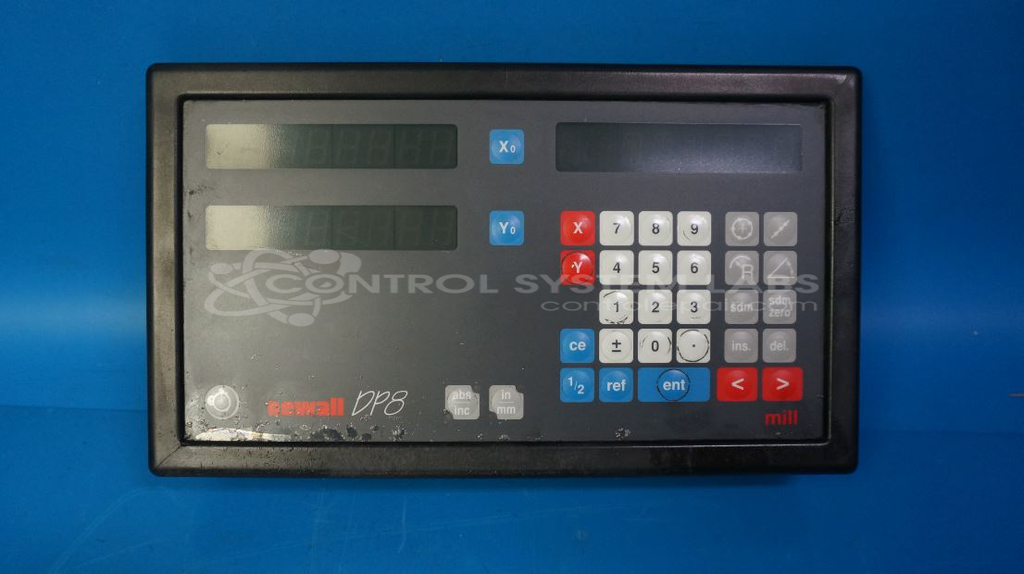

Product Overview: The Newall DP8 Digital Display Unit is a 2-axis digital readout (DRO) used for precision position measurement on machine tools such as lathes and mills. It receives signals from linear scales mounted on the machine axes and displays real-time position data in inches or millimeters. The unit features a membrane keypad for zero setting, axis selection, and unit conversion. It connects to a separate sending unit or control box that processes encoder signals via differential line drivers before transmission to the display. Common configurations include X and Z axis monitoring for turning applications.
Category: Meters / Gauges / Readouts
Manufacturer: Newall Electronics
Manufacturer Part Number: 8DM211000
Series: DP8 DIGITAL DISPLAY
Please send your DP8 Digital Sending Unit (8SM211000) in with this keypad to assist in testing the unit. CSL has Sperosyn and Microsyn transducers for testing. If a new overlay is required that will be quoted separately, is not part of our normal repair proce.
Common Failures
Customers frequently report issues with the Newall DP8 related to non-responsive keypads and buttons not working properly. Common symptoms include the X+Y zero and inch to mm buttons failing to function, as well as power button malfunctions. Additionally, some customers experience display issues where the unit does not operate correctly despite receiving power.
Repair Approach
We can evaluate keypad and button failures to determine if membrane keypad replacement or other service is appropriate. Evaluation may include cleaning the front panel and inspecting electronic components such as the differential line driver and capacitors. Custom overlays can be designed and produced for specific applications when needed, such as lathe versus mill configurations.
Testing & Quality Assurance
After repair, units undergo diagnostic testing to verify functionality. Testing typically includes checking button responsiveness and performing operational tests. We also inspect units to confirm proper display and operational functionality after service.
Service and repair your broken Newall Electronics part
We can repair your Newall Electronics model 8DM211000 in our facility. Let our skilled technicians get your Newall Electronics back in operation quickly.
