Repair
Repair Price: $ 1,000.00
Purchase
CSL Part Number: 67839

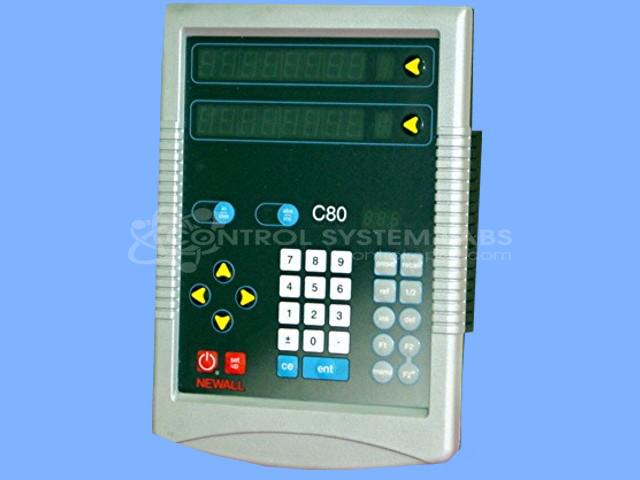

Product Overview: The Newall C80 Digital 2 Axis Readout Unit is a DRO (digital readout) system that displays precise positional measurements for two-axis machining operations. It accepts input from linear scales or encoders such as Microsyn or Spherosyn types and converts position data into digital readouts for the operator. Commonly used on lathes, mills, and other machine tools, it provides real-time X and Y axis positioning information. The unit features a keypad interface for configuration and operates on 15V DC external power supply. Scale compatibility is configurable through setup menus.
Category: Meters / Gauges / Readouts
Manufacturer: Newall Electronics
Manufacturer Part Number: C8020002
Please include the AC power adaptor in with your DRO when ending in for repair.
Common Failures
Units received for evaluation have exhibited issues including non-responsiveness and defective power supplies. Some specific problems reported include units not recognizing scales, intermittent readout digits, and errors in dimensional readings following power surges.
Repair Approach
Repairs may involve replacing defective capacitors and power supplies to restore functionality. Cleaning is conducted as needed when grime buildup is observed. Ensuring correct settings for encoders, such as switching from Spherosyn to Microsyn, may also be necessary to resolve display inaccuracies.
Testing & Quality
Units undergo diagnostics and testing, including burn-in tests and testing of all ports and buttons. Repairs are verified by technicians to ensure proper functionality before units are returned to customers.
Service and repair your broken Newall Electronics part
We can repair your Newall Electronics model C8020002 in our facility. Let our skilled technicians get your Newall Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
