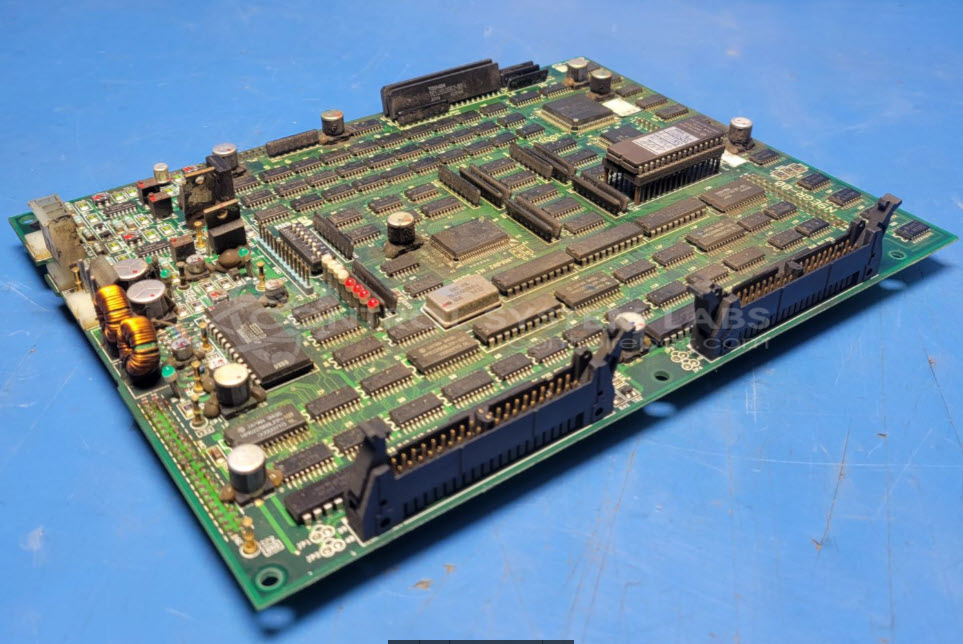

Nissei 4TP-1C709 Nissei Control Board
Repair
Call for price
Purchase
CSL Part Number: 117044
Product Overview: The Nissei 4TP-1C709 is a control board used in Nissei injection molding machines. It manages machine control functions and interfaces with various subsystems to coordinate molding operations. The board features surface-mount electrolytic capacitors throughout its design for power filtering and signal conditioning. It operates in industrial environments subject to heat and electrical stress, making capacitor health critical for reliable operation.
Category: Control Board
Manufacturer: Nissei
Manufacturer Part Number: 4TP-1C709
Please include schematics and wiring diagrams
Common Failures
Common issues with these boards include degraded electrolytic capacitors. Some capacitors may exhibit high Equivalent Series Resistance (ESR) or fail to function. In some cases, capacitor leakage can cause corrosion on the board.
Repair Approach
The repair process typically involves removing damaged capacitors, cleaning affected areas, and addressing any corroded traces. Replacement capacitors are then installed.
Testing & Quality
After repairs are completed, the boards are tested according to CSL procedures. Final validation of the board's performance in the customer's specific system or application is the responsibility of the customer.
Limited Repair
The Nissei part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Nissei part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
