CSL Part Number: 48384

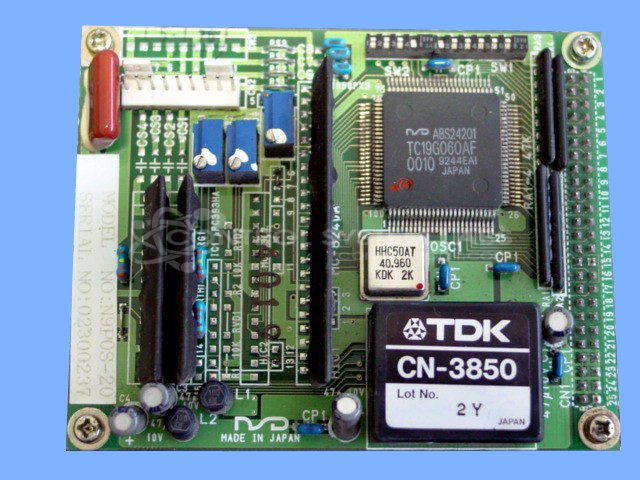

Product Overview: The Nissei N9POS-20 is an encoder position option board used in Nissei injection molding machine control systems. It interfaces with encoder feedback devices to provide precise position monitoring and control for machine movements. This board works in conjunction with other control modules to ensure accurate positioning during molding cycles. Known configurations include electrolytic capacitor components that are critical to board operation and signal integrity.
Category: Control Board
Manufacturer: Nissei
Manufacturer Part Number: N9POS-20
Common Failures
Some of the primary issues identified in the repair history include faulty components on various boards, particularly electrolytic capacitors. Symptoms associated with these issues are often related to damaged or deteriorated components indicated by signs of physical corrosion or failed capacitors, which can affect the overall performance of the board.
Repair Approach
The repairs typically involve removing damaged components, cleaning any corrosion present, and ensuring the integrity of the board's connections by repairing or re-tinning traces as necessary. Once cleaned and repaired, new components are installed to replace the defective ones.
Testing & Quality
After repairs, boards undergo component-level testing. While full system tests are not always performed post-repair, initial testing stages are completed to ensure basic functionality. Final testing in the actual system environment is the customer's responsibility.
Limited Repair
The Nissei part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Nissei part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
