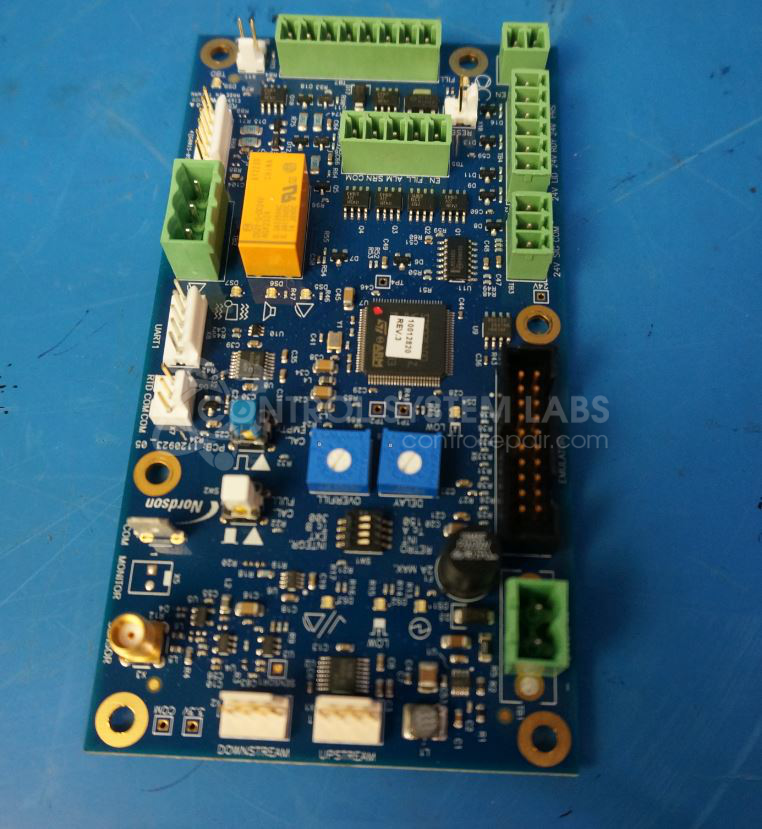

Nordson 1124443 Control Board
Repair
Repair Price: $ 1,156.00
Purchase
CSL Part Number: 83463
Category: Control Board
Manufacturer: Nordson
Manufacturer Part Number: 1124443
Common Failures
We have observed issues with outputs not turning off as expected. Both vacuum and vibrate outputs were observed to remain on after being triggered, even when they were supposed to turn off. This issue required power cycling to reset the outputs.
Repair Approach
The identified problem was traced to malfunctioning smart switches responsible for managing these outputs. These switches were found to be out of specification and were subsequently replaced. Following the replacement of these smart switches, the unit was tested to ensure all outputs functioned properly.
Testing & Quality
Post-repair testing confirmed that all outputs were operating correctly, addressing the reported issues.
Service and repair your broken Nordson part
We can repair your Nordson model 1124443 in our facility. Let our skilled technicians get your Nordson back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
