Repair
Call for price
Purchase
CSL Part Number: 86658
Category: Pendant
Manufacturer: Omnex
Alternate Manufacturer Names: MarQuipt
Manufacturer Part Number: 1240-19
Other Synonyms: MarQuipt
Common Failures

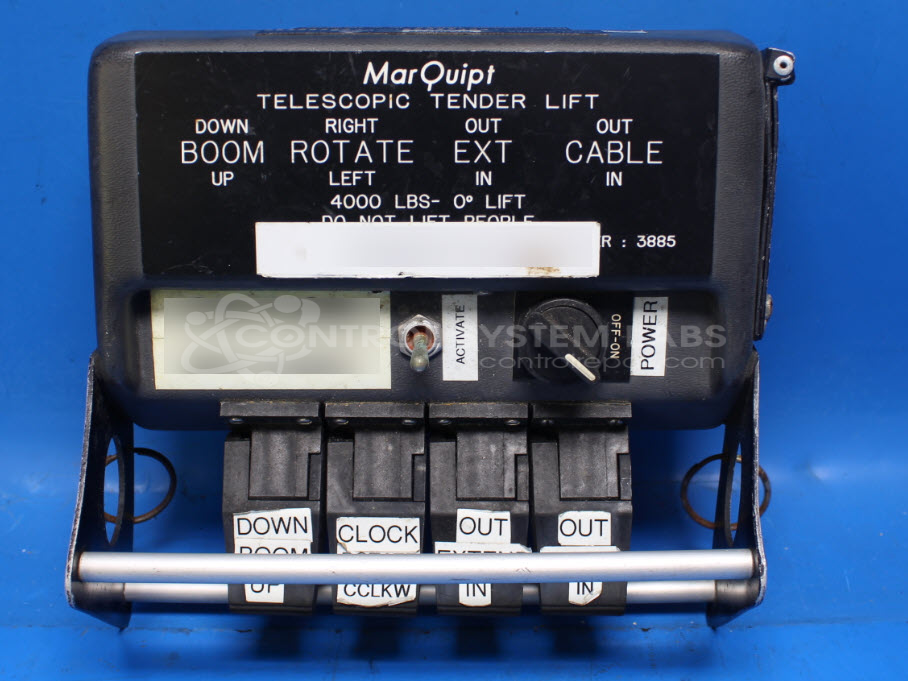

The primary issue reported with the wireless units for deck cranes involved connectivity problems, specifically units that would not power on or connect to the receiver. In most cases, the wired controls functioned correctly, but the wireless controls encountered issues.
Repair Approach
Repairs often involved addressing problems with battery contacts. For instance, replacing or modifying battery contacts and wires from the battery to the main board resolved many issues. Other steps included re-adhering the battery compartment and unit faceplate and adding a pull tab to ease battery removal. In some instances, faults were not verified during evaluation, but units were tested to verify power and connectivity.
Testing & Quality
Post-repair testing verified that the units powered up and connected to their receivers. Additional checks confirmed that all switches functioned as expected, and the safety interlock operated correctly.
Service and repair your broken Omnex part
We can repair your Omnex model 1240-19 in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
