Repair
Repair Price: $ 1,894.00
Purchase
CSL Part Number: 85676

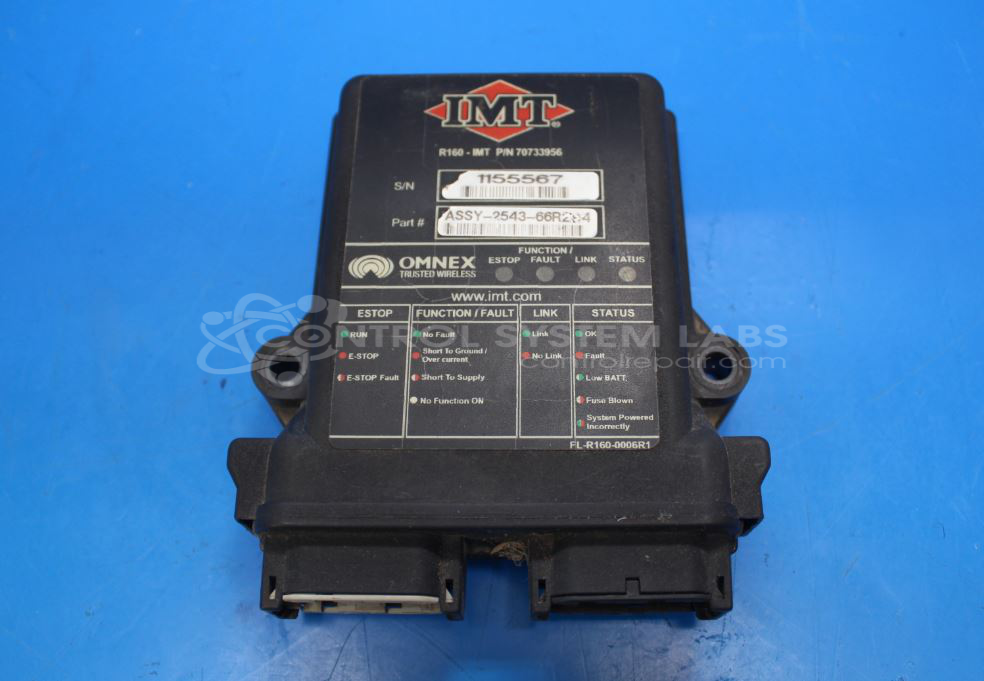

Product Overview: The R160 Receiver is a wireless control receiver manufactured by Omnex for industrial radio remote control systems. It pairs with compatible transmitters to wirelessly control machinery functions such as crane operations, engine start/stop, proportional outputs, and emergency stop circuits. The receiver features multiple digital outputs, proportional control capability, and dual emergency stop monitoring circuits with feedback. It operates on 12-24VDC input and includes status LEDs for link, function/fault, and e-stop indication. Common applications include mobile cranes, aerial lifts, and other heavy equipment requiring reliable wireless control. The unit uses a Deutsch dual 12-pin connector for output connections and includes an external antenna for radio communication.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: 70733956
Series: R160 Receiver
Also Known As(AKA): ASSY-2543-66
Please send the matching transmitter/pendant in with it so they can be tested together.
Common Failures
Common reported issues include E-stop errors, connection problems, and LED status malfunctions. These issues may result from defective components such as optocouplers and MOSFETs or from corrosion around connectors. Remote pairing difficulties and intermittent connection issues have also been observed.
Repair Approach
Repairs typically involve replacing defective components, addressing corroded areas, and resoldering connections as needed. Diagnostic testing is performed to identify failures, such as E-stop fault persistence or inconsistent output signals. In some cases, installing or replacing components like antennas and pushbuttons may be required. Corrosion-related repairs may require additional time to clean and restore affected areas.
Testing & Quality
Units are tested using established procedures, which may include communication tests with customer-provided equipment and diagnostic testing to confirm component function. Units are inspected to ensure no faults, such as short circuits or improper connections, are present before return. Units that pass testing are considered serviceable.
Service and repair your broken Omnex part
We can repair your Omnex model 70733956 in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
