Repair
Repair Price: $ 2,596.00
Purchase
CSL Part Number: 100100

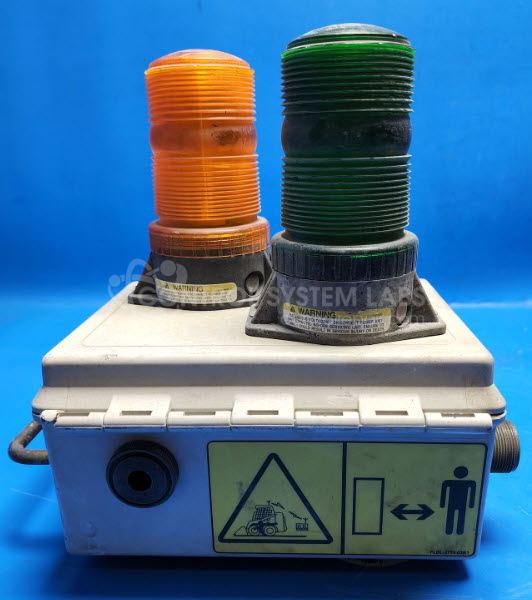

Product Overview: The Omnex ASSY-2257-09R3.04 is a radio control receiver system housed in a weatherproof control box. It receives wireless signals from a remote transmitter and converts them into control commands for industrial machinery. The unit features MIL-DTL-5015 circular connectors for power and signal connections, CANBUS communication interface for transmitting joystick positions and button inputs to connected equipment, and integrated alarm functions with strobe light and audible buzzer. Commonly used in mobile equipment, cranes, and remote-operated machinery where wireless control is required.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: ASSY-2257-09R3.04
Brand: Omnex
We request the mating transmitter and vehicle wiring diagrams be sent with this
Common Failures
Units may experience issues such as failure to respond to transmitters. Water damage leading to corrosion has been observed as a contributing factor in some cases. Corrosion can affect connectors, wiring, and other components, potentially resulting in communication failures or non-functional alarms.
Repair Approach
Repairs may involve cleaning internal components to remove corrosion, replacing corroded connectors and wiring, and resealing the unit with RTV silicone to help prevent future water ingress. In some cases, the strobe bulb or other parts may require replacement due to damage.
Testing & Quality
Following repairs, testing is conducted to verify proper communication, power, and functionality of alarms. The system's response to joystick and button inputs is also checked to confirm the unit operates as expected. Repaired units undergo testing to verify functionality before being returned to customers.
Repair your broken Omnex part
We can repair your Omnex model ASSY-2257-09R3.04 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
