Repair
Repair Price: $ 1,995.00
Purchase
CSL Part Number: 117704

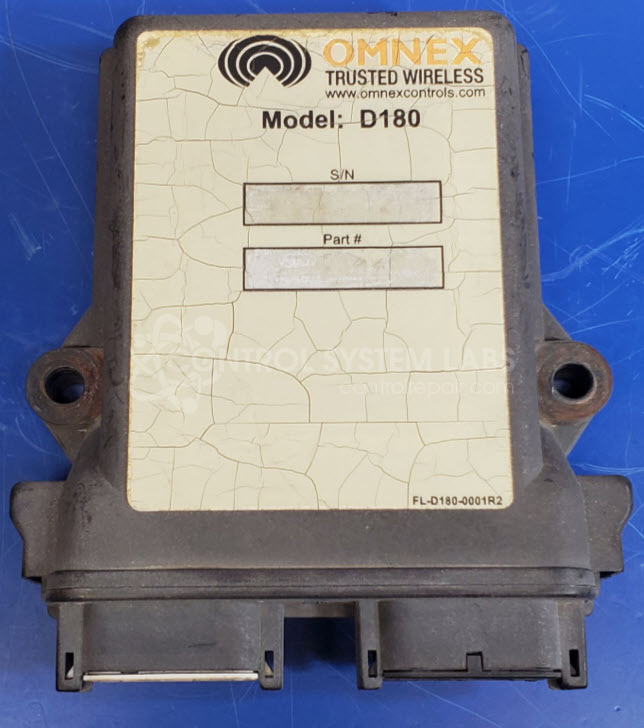

Product Overview: The D180 14 Channel PWM Control Expansion Module is a proportional function expansion module manufactured by Omnex. It provides 14 channels of pulse-width modulation (PWM) control for industrial automation applications. This module is commonly used in Elliott compressor control systems and other process control equipment requiring multiple proportional output channels. The unit features multilayer circuit board construction and interfaces with primary control systems to expand PWM control capabilities for valve actuation, motor speed control, and other proportional control functions.
Category: Control Module
Manufacturer: Omnex
Manufacturer Part Number: ASSY-3697-12
Series: D180
Also Known As(AKA): D180
If the PCB inside is burned up - no CSL repair
Common Failures
This product may experience damage to its multilayer circuit board. In some cases, the extent of damage can affect repairability.
Repair and Replacement Options
We would be glad to review the item. Once the unit is received and reviewed, we can provide a quotation before charges are incurred. If a unit is determined to be Beyond Economic Repair (BER), we can discuss available options with you.
Service and repair your broken Omnex part
We can repair your Omnex model ASSY-3697-12 in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
