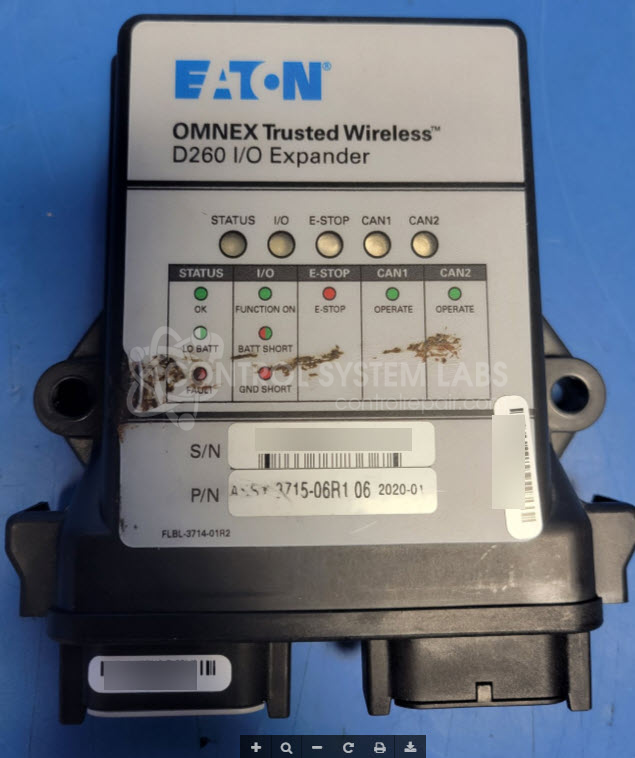

Omnex D260 Trusted Wireless D260 I/O Expander Control
Repair
Call for price
Purchase
CSL Part Number: 113487
Product Overview: The Omnex D260 is a wireless I/O expander control module designed for distributed control applications requiring remote input/output capability. It operates on 12Vdc and communicates via CANBUS protocol, allowing it to interface with larger control networks. The unit features modular expansion slots that accept optional PWM output cards for variable control of actuators such as proportional valves. Common applications include mobile equipment, agricultural machinery, and industrial automation systems where wireless I/O distribution reduces wiring complexity. The D260 includes multiple digital I/O points and supports integration with other networked devices in a complete control system.
Category: I/O Card & Modules
Manufacturer: Omnex
Manufacturer Part Number: D260
Also Known As(AKA): 3715-06R1 06
Please include the matching receiver, transmitter, and if possible the wiring diagrams from the vehicle this is used in, or our repairs will be limited.
Common Failures
Common issues observed in this product include impact-related physical damage that may affect components such as capacitors and connectors. In some cases, visual inspection has revealed signs of thermal stress, though specific findings vary by unit.
Repair Approach
Repairs may involve rework of solder connections on daughter cards and option cards, including areas related to PWM outputs. Conformal coating may be removed as needed to access affected areas, and damaged solder joints are resoldered. Conformal coating is reapplied to protect the PCB after repair work is completed.
Testing & Quality
Testing procedures include component-level verification of LEDs, optocouplers, and MOSFETs. Units are verified to power on with standard voltage inputs and checked for CANBUS communication output. Please note that full system-level testing may not be performed due to equipment limitations.
Limited Repair
The Omnex part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Omnex part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
