Repair
Repair Price: $ 1,696.00
Purchase
CSL Part Number: 86316

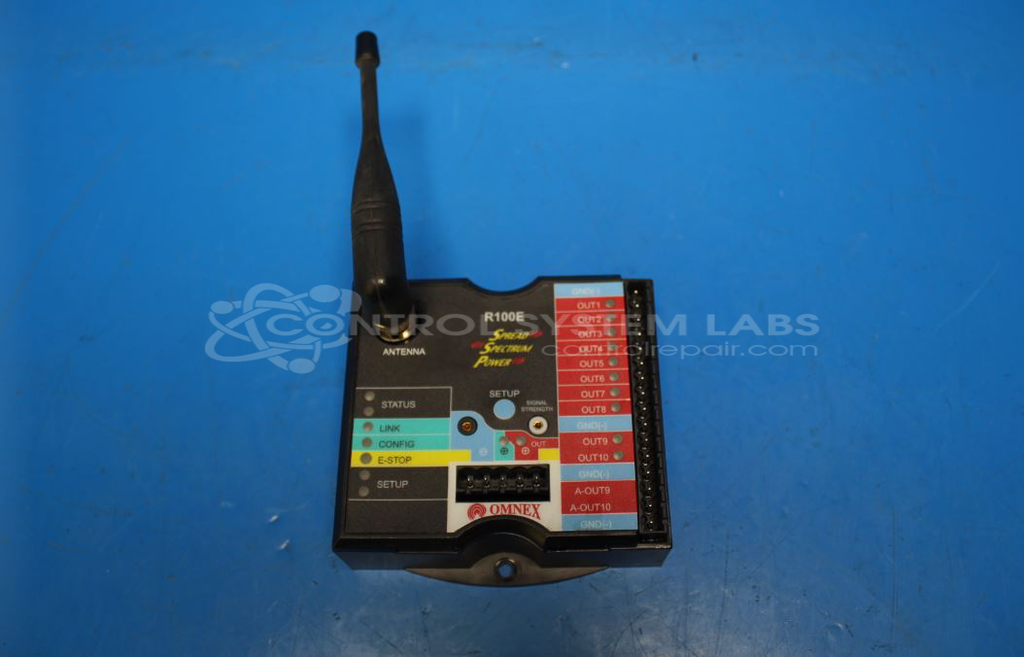

Product Overview: The Omnex R100E is a wireless RF receiver designed to work with compatible Omnex radio remote control transmitters for industrial equipment operation. Pre-2004 units use an older communication protocol and cannot be updated to support newer 24-bit transmitters manufactured after 2018. The potted unit features a BNC antenna connector, internal RF board, and relay interface. It is commonly used in crane and hoist control systems requiring reliable wireless communication.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: R100E
Also Known As(AKA): 1766-02R04
Common Failures
Common issues observed during evaluation include broken antenna ports, non-functional power switches, damaged battery contacts, and deteriorating rubber insulation around antennas. Some older units may have limited compatibility with newer 24-bit transmitters.
Repair Approach
Repairs may involve replacing damaged connectors, utilizing adhesive heat shrink for antenna repair, and verifying component functionality. In some cases, more extensive work such as de-potting and component replacement may be required. The scope of repair is determined after evaluation, and a quotation is provided before work begins.
Testing & Quality
Post-repair testing includes communication tests and button functionality checks. Units undergo comprehensive testing procedures to verify quality and operational performance.
Service and repair your broken Omnex part
We can repair your Omnex model R100E in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
