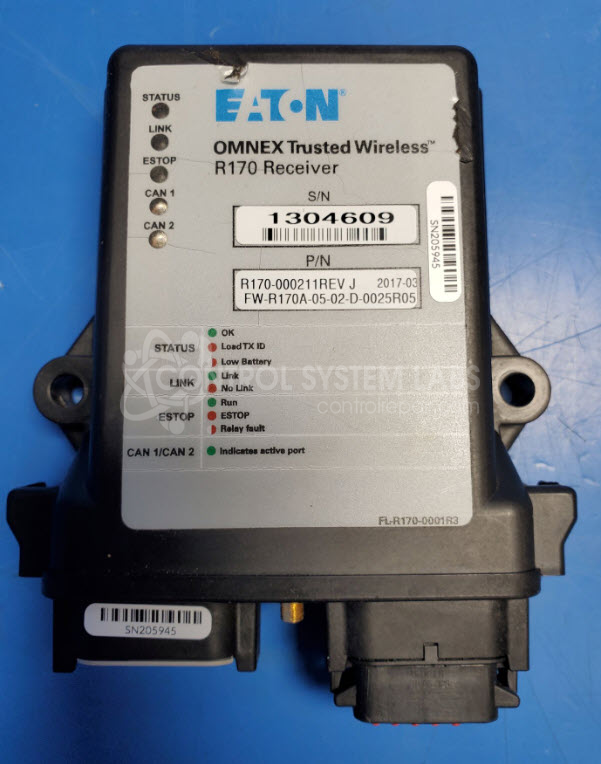

Omnex R170-000211 REV J Trusted Wireless Remote Receiver
Repair
Repair Price: $ 1,894.00
Purchase
CSL Part Number: 106992
Product Overview: The Omnex R170 is a trusted wireless remote receiver that provides secure radio frequency communication for industrial remote control systems. It operates at 2.4 GHz and uses an external antenna with MCX-RA cable connection to receive signals from compatible wireless transmitters. Commonly deployed in mobile equipment, cranes, and material handling applications where reliable wireless control is critical, the receiver processes input commands from remote operators and interfaces with machine control systems. The unit features adjustable RF circuitry with trim potentials and variable inductors for signal optimization.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: R170-000211 REV J
Series: R170 Receiver
Please send matching transmitter in so we can test together.
Common Failures
Common symptoms for this product include issues with the antenna, such as limited connectivity to a transceiver, with functionality typically restricted to a range of 5-6 feet. These issues are often attributed to defective solder joints on the communication board or damage to the antenna harness.
Repair Approach
Typical repair solutions involve resoldering connections on the communication board, adjusting and replacing components like op amps and inductors to match performance specifications, and, if necessary, replacing damaged components such as the antenna harness. In some cases, swapping out the RF board with a tested alternative may be considered for restoring functionality.
Testing & Quality
Following repairs, the item undergoes testing to validate functionality, including communication at 2.4GHz and confirming that the unit can receive inputs from a transceiver. These tests are performed to verify operational specifications before the unit is returned.
Service and repair your broken Omnex part
We can repair your Omnex model R170-000211 REV J in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
