Repair
Repair Price: $ 1,894.00
Purchase
CSL Part Number: 87745

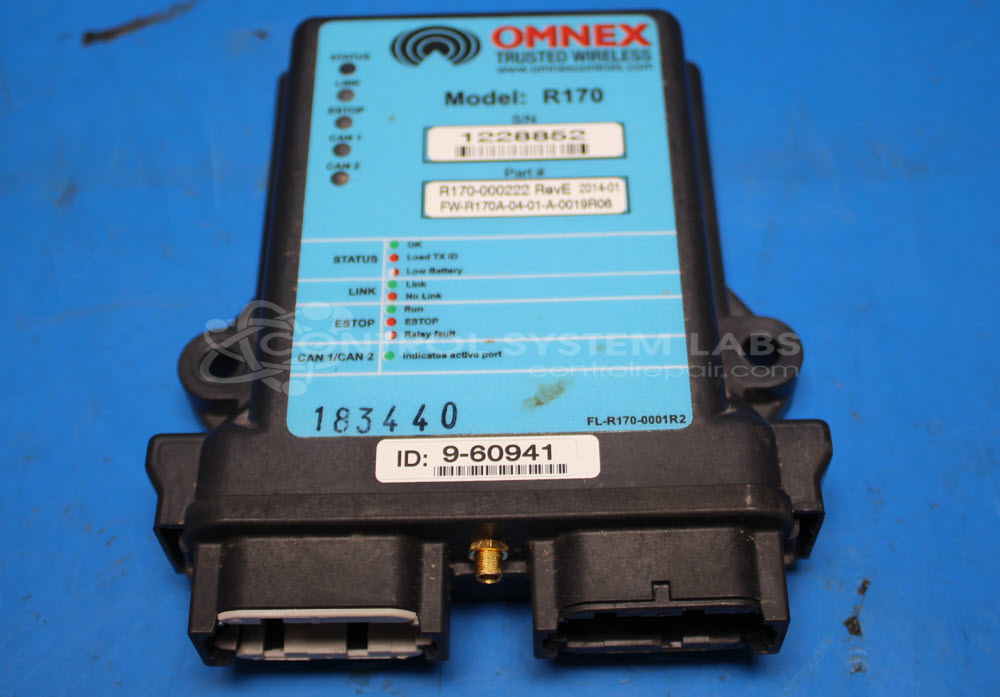

Product Overview: The Omnex R170 is a universal trusted wireless remote receiver that pairs with Omnex T-series transmitters to provide radio control for industrial mobile equipment and machinery. It communicates via CAN bus and registers all inputs from paired transmitters including switches, paddles, joysticks, and potentiometers. The receiver uses a proprietary pairing protocol and supports multiple transmitter configurations. Common in material handling and mobile hydraulic applications, it serves as the base station for wireless machine control systems.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: R170-000222 RevE
Series: R170 Receiver
Must send in matched/paired transmitter for full system normal repair test. Limited repair and no warranty on work done without this.
Common Failures
Several units have experienced communication and functionality issues, often due to corrosion damage. Corrosion has been known to affect signal paths, which may prevent proper operation of the transmitter and receiver units. In some cases, no fault was detected, or the issues were intermittent and resolved during testing and reprogramming.
Repair Approach
The primary repair actions include addressing corrosion by repairing or replacing damaged pathways, such as vias. Units are often paired at triage and verified for functionality as part of the repair process. In some cases, only minor programming or cleaning was needed to restore function, while others required more extensive corrosion repair.
Testing & Quality
Units undergo testing to verify proper pairing and operation with customer transmitters. This includes verifying that all buttons, switches, paddles, and joysticks are recognized by the system. Level 3 to Level 5 testing, as well as burn-in tests, are commonly performed to confirm repair success and quality before returning the units to customers.
Repair your broken Omnex part
We can repair your Omnex model R170-000222 RevE .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
