Repair
Repair Price: $ 1,768.00
Purchase
CSL Part Number: 118118

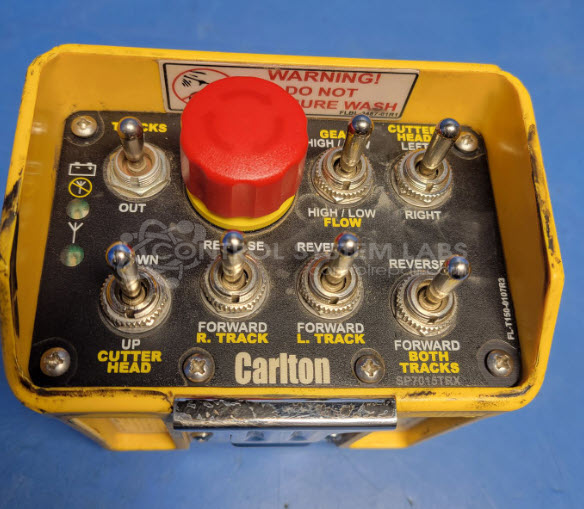

Product Overview: The T150 is a handheld industrial radio remote controller manufactured by Omnex. It wirelessly transmits control commands to a compatible receiver, typically an R170 model, to operate machinery from a distance. Commonly used in mobile equipment and municipal applications, it features multiple toggle switches for function control, panel LEDs for status indication, and an emergency stop capability. The unit operates via radio frequency transmission and includes an antenna with LED indicators for sync and communication status.
Category: Transmitter
Manufacturer: Omnex

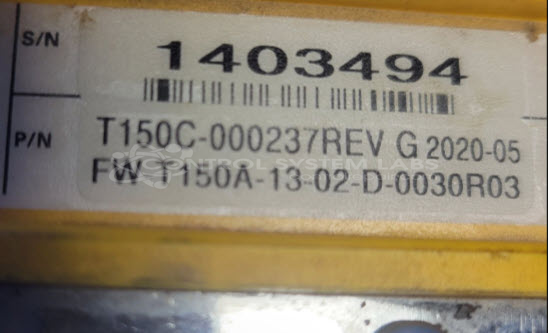

Manufacturer Part Number: T150C-000237 REV G
Series: T150 Handheld Remote Controller
Common Failures
Units may experience synchronization loss with their receiver, leading to system shutdown. This issue can be caused by a faulty switch that creates a short circuit, or by damaged wiring connections due to incorrect or missing components such as a rubber gasket.
Repair Approach
To address these issues, diagnostic testing is conducted to identify problematic components. Common corrective actions include replacing switches with the correct specification and ensuring proper installation, including necessary gaskets. Verification against the wiring diagram is performed to confirm proper assembly. Cleaning and reassembly of the affected parts are also performed as needed.
Testing & Quality
After repair, the unit undergoes testing to verify that functions operate correctly, including switch operations and LED signaling. The system is verified for proper function transmission and compliance with test procedures. All tests are conducted to ensure that repaired units meet CSL quality and performance standards.
Service and repair your broken Omnex part
We can repair your Omnex model T150C-000237 REV G in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
