Repair
Repair Price: $ 1,960.00
Purchase
CSL Part Number: 88670

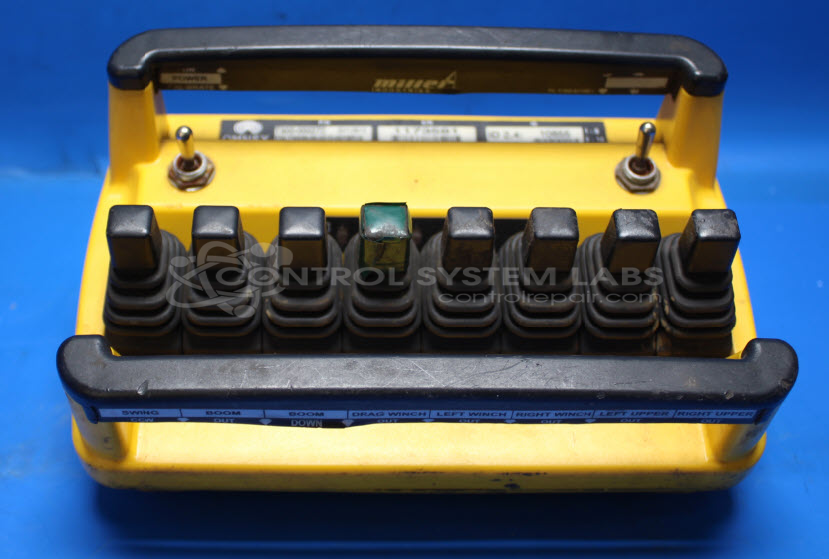

Product Overview: The Omnex T300 Series Remote Controller (part number T300-000272) is a handheld radio transmitter used for wireless control of industrial equipment, particularly on tow trucks and heavy-duty wreckers. It operates at 2.4GHz and features up to eight analog control paddles for proportional control of functions like rotation, boom extension, and winch operation, along with toggle switches for speed selection and an emergency stop button. The unit is powered by C or D cell batteries and uses shift registers (74HC597, 74HC575) to scan switch inputs and control output drivers. Common applications include Miller rotator wreckers and similar heavy equipment requiring multi-axis remote operation. The controller pairs wirelessly with a corresponding receiver unit to transmit control signals.
Category: Transmitter
Manufacturer: Omnex
Manufacturer Part Number: T300-000272
Series: T300 Series Remote
Also Known As(AKA): FW-T300B-05-02-D-0018R19
Common Failures
Common issues observed with this product include physical damage such as cracked cases, broken circuit boards, and damaged components from external impacts. Board damage may result in faulty transmission or non-responsive paddles and switches. Solder joint issues and internal shorts due to stray solder balls have also been observed.
Repair Approach
Repairs may involve replacing defective components such as toggles, switches, connectors, and resistors. For circuit board damage, trace repairs and component replacement are common. Mechanical integrity may be restored by re-molding or replacing cases when necessary. Conformal coatings and RTV sealants may be applied to protect against environmental factors.
Testing & Quality
After repairs, testing is performed to verify function, including transmission and paddle responsiveness. Diagnostic tools are used to verify component functionality under simulated operating conditions. Products undergo standard testing protocols to verify performance.
Service and repair your broken Omnex part
We can repair your Omnex model T300-000272 in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
