Repair Price: $ 880.00
Purchase
CSL Part Number: 87800

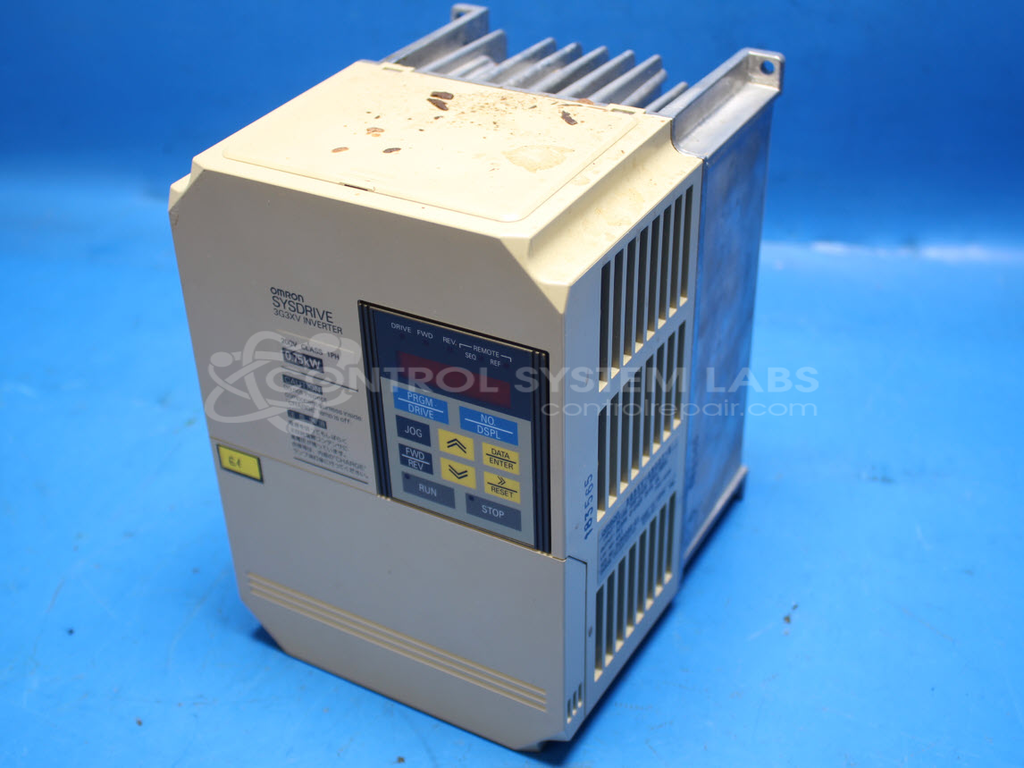

Product Overview: The Omron 3G3XV-AB007-E is a three-phase AC inverter (variable frequency drive) rated for 2kVA at 5A, with output voltage adjustable from 0 to 240V. It belongs to Omron's 3G3XV SYSDRIVE series, designed for precise motor speed control in industrial automation applications. This model accepts single-phase or three-phase input power and provides three-phase output to drive AC motors in machinery such as conveyors, pumps, fans, and paper processing equipment. The inverter features analog and digital control inputs for speed/torque adjustment and integrates protective functions to safeguard connected motors and driven equipment.
Category: AC Motor Controls
Manufacturer: Omron
Manufacturer Part Number: 3G3XV-AB007-E
Series: 3G3XV SYSDRIVE Inverter
Common Failures
Customers commonly report issues with phase inconsistencies in the output, where the product operates with two out of the three expected phases. Other symptoms include leaking capacitors and noticeable electrolytic fluid on the board, leading to open traces and component failure. Capacitors and resistors are particularly prone to failure, which can affect the IGBT power module.
Repair Approach
Repairs typically involve replacing defective and leaking capacitors, along with any corroded resistors and diodes. The power module is also replaced if diagnosed as faulty. Thorough component cleaning and reassembly are essential, including reapplying heatsink compound during module installation. Additional component replacements may be performed as needed.
Testing & Quality
Following repairs, the product undergoes burn-in testing using a standard motor to evaluate operation. The unit is monitored for functionality across all phases and tested with customer-specific settings for extended periods when possible. Successful completion of these tests indicates the unit is operational and ready for return.
Service and repair your broken Omron part
We can repair your Omron model 3G3XV-AB007-E in our facility. Let our skilled technicians get your Omron back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
