CSL Part Number: 114457

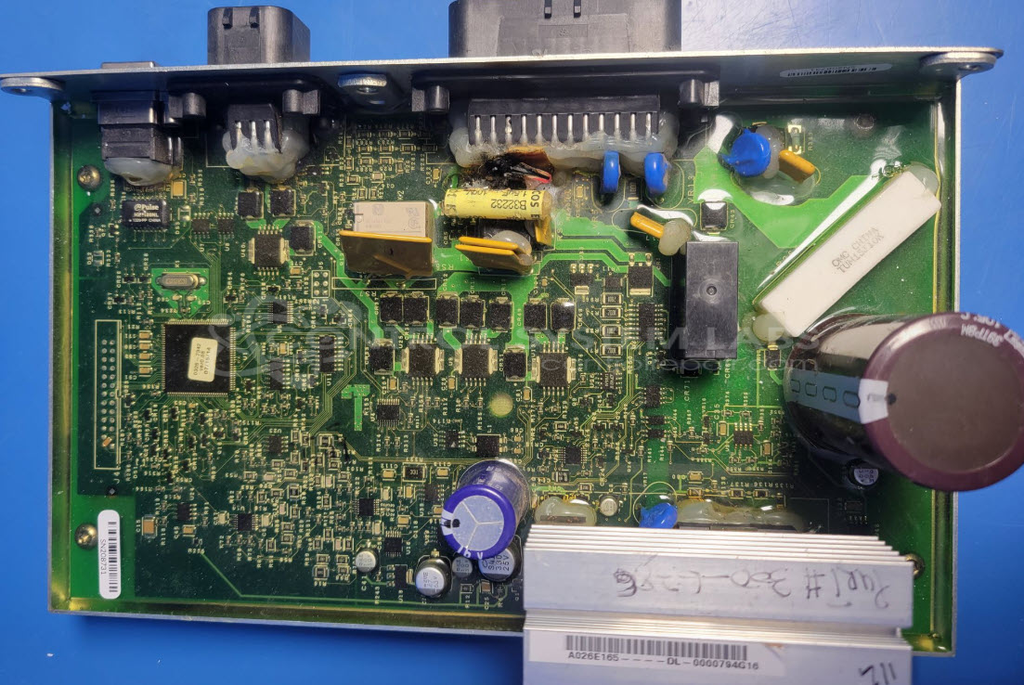

Product Overview: The ONAN 0326-7342 is a power control board used in ONAN generator sets to regulate electrical output and manage generator operation. This heavily potted circuit board contains MOVs for surge protection, film capacitors, and electrolytic capacitors that work together to condition and control power distribution. It interfaces with external generator components through main plug connections and is typically found in industrial and commercial standby power systems where ONAN generators provide backup or primary electrical generation.
Category: Power Controls
Manufacturer: ONAN
Manufacturer Synonyms: Cummins
Manufacturer Part Number: 0326-7342

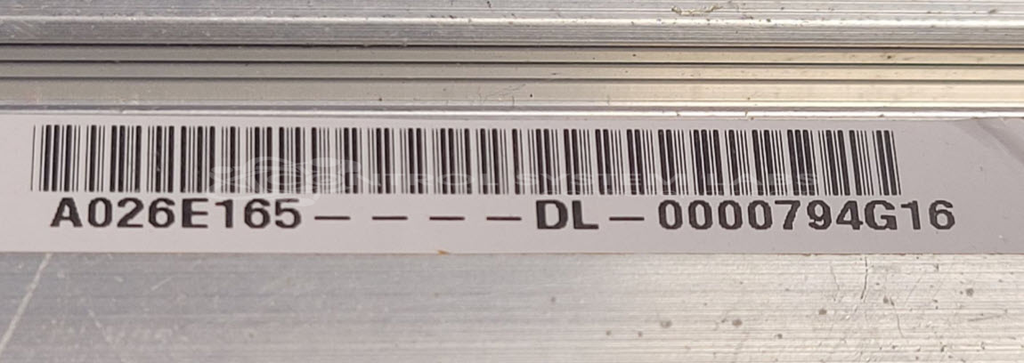

Also Known As(AKA): A026E165
Some of these boards are heavily potted - that may make repairs difficult, will have cost adders for potting removal. Please include wiring diagrams, genset model serial and engine number.
Common Failures
Common issues with these control boards include visible burn damage and overheating near capacitors, which often results in scorch marks, melted components, and damaged connectors. Key problematic components are the MOV, resettable fuses, and capacitors, which may develop holes or exhibit increased equivalent series resistance (ESR). A frequently observed failure involves an open resistor due to component degradation.
Repair Approach
Repairs typically involve replacing defective components such as the MOV, film capacitors, and resistors. The process may require removing and re-potting components to access and replace malfunctioning elements. Due to the heavy potting of these units, repairs are performed on a Time and Materials basis and are not warrantied.
Testing & Quality
Post-repair testing verifies the replacement of defective components. Complete power-up testing is not available due to the lack of wiring diagrams and the inability to simulate generator conditions. Final testing is required by the customer to confirm system functionality.
Limited Repair
The ONAN part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your ONAN part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
