CSL Part Number: 118502
Product Overview: The One Charge B45.02.13 is a lithium-ion battery controller designed for electric forklift applications, commonly found in Hyster E120 series lift trucks. It manages battery charging operations and monitors battery health through modular circuit boards and integrated relays. The system includes a DC-to-DC power supply, solid-state relays (SSRs), high-current contactors (solenoids), and battery monitoring boards with communication termination. Key components include CPC1709J and CPC1906Y photo relays, GX66BDB 12-volt solenoids, and multiple interconnected PCBs with Molex connectors for modular integration into the forklift's electrical system.
Category: Battery Charger
Manufacturer: One Charge Inc
Alternate Manufacturer Names: Ebox

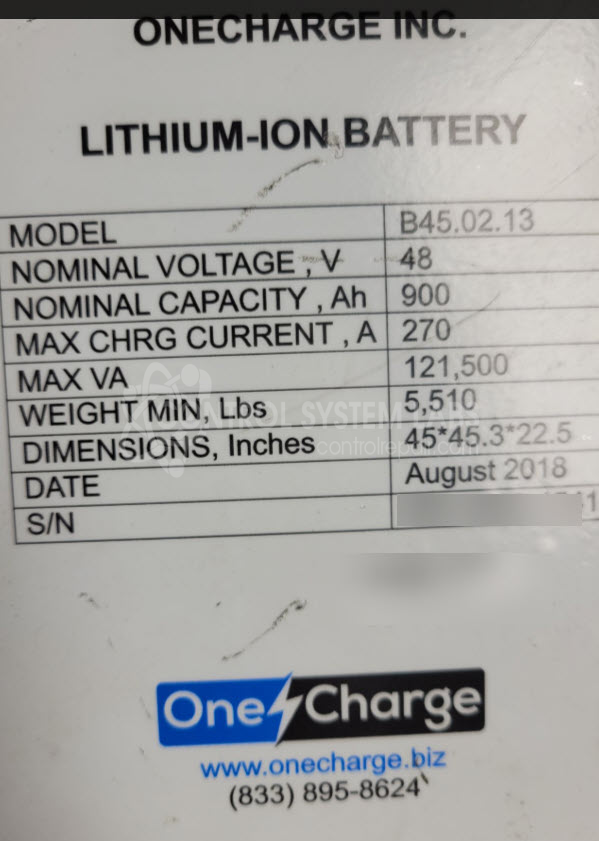

Manufacturer Part Number: B45.02.13
Other Synonyms: Ebox
Please include a manual and wiring diagram with the unit for repair.
Common Failures
This product commonly experiences power-related issues, including defective relays, faulty solder joints, burnt connectors, and loose connections. Additional failures may include damaged connections or improperly mounted boards.
Repair Approach
The typical repair process involves replacing defective relays and connectors, repairing solder joints and traces, and securing loose connections. Inline fuses may be added as a preventative measure when appropriate. When necessary, components are replaced to restore functionality.
Testing & Quality
Following repairs, the product undergoes testing to verify functionality. Tests include power verification and burn-in testing to confirm proper operation of replaced components and overall system performance. The testing process helps identify any remaining issues before the unit is returned.
Service and repair your broken One Charge Inc part
We can repair your One Charge Inc model B45.02.13 in our facility. Let our skilled technicians get your One Charge Inc back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
