Oriental Motor Co. UDX5107N Super Vexta 5 Phase Motor Driver
Repair
Repair Price: $ 708.00
Purchase
CSL Part Number: 17431

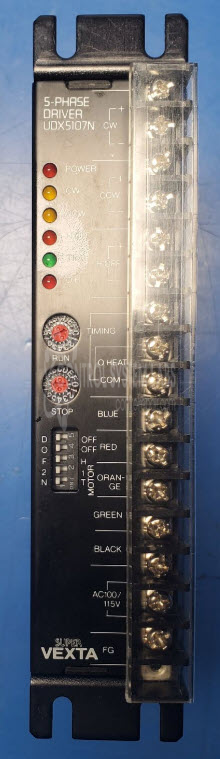

Product Overview: The Oriental Motor UDX5107N Super Vexta is a 5-phase stepper motor driver designed to control 5-phase stepper motors in precision motion applications. It operates at low current (0.75A per phase) and accepts 110VAC input. Common applications include industrial automation, robotics, and pick-and-place systems where precise positioning is critical. The driver features bidirectional control (CW/CCW), thermal overload protection, and adjustable run/stop settings via DIP switches. It uses Darlington transistor arrays (SLA6020) for output drive stages and includes various protection circuits.
Category: Motor Controls
Manufacturer: Oriental Motor Co.
Manufacturer Part Number: UDX5107N
Common Failures
Common issues with these units include drivers not responding to commands, motors failing to move, intermittent motor control, units stopping or losing position, and distorted output waveforms. Defective components such as internal fuses, transistors, optocouplers, and voltage regulators are often identified during evaluation.
Repair Approach
Repairs typically involve replacing defective components such as transistors, optocouplers, and voltage regulators. Preventative replacement of electrolytic capacitors is performed when underlying issues are identified. In some cases, units may be found to be beyond economic repair due to parts availability or the extent of required work.
Testing & Quality Assurance
Units undergo evaluation and testing using various tools, including circuit analysis equipment and digital multimeters, to identify the cause of failures. Burn-in tests under load are performed to verify reliability after repair. Functional tests evaluate the performance of critical operations such as motor control and output waveform consistency. Quality checks are conducted to validate repair results. Units are tested before being returned as serviceable.
Service and repair your broken Oriental Motor Co. part
We can repair your Oriental Motor Co. model UDX5107N in our facility. Let our skilled technicians get your Oriental Motor Co. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
