Orion 336 REV 5 336 Multi-Stretch Motor Board

Repair

Repair Price: $ 664.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/30597/image_1920?unique=ccdf2af
  • Condition

Purchase Price: $ 0.00 $ 0.00 664.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 11202

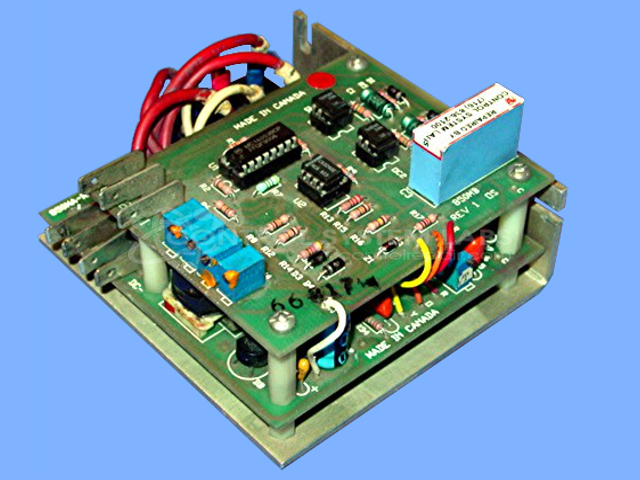

Product Overview: A motor control board for AC and DC motors, providing speed and stretch regulation in paper processing and web-handling machinery. Features adjustable calibration potentiometers (R1-R4), quick-disconnect terminals, and an onboard power cube for DC and AC power distribution.
Category: Motor Controls
Manufacturer: Orion
Manufacturer Part Number: 336 REV 5

Common Failures

This product has a history of issues related to loose or burnt connection terminals, broken solder joints, and faulty power components. Reports indicate missing quick disconnects and general connectivity problems affecting performance.

Repair Approach

Repairs typically involve resoldering connections, replacing quick connect terminals, and installing new power components. The process often includes a thorough burn-in testing period to verify stability and proper functioning after repairs.

Testing & Quality

After repairs, units undergo diagnostic testing and burn-in periods ranging from 1 to 16 hours. This testing is performed to verify that connectivity and functional issues have been addressed.

Service and repair your broken Orion part


We can repair your Orion model 336 REV 5 in our facility. Let our skilled technicians get your Orion back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
