Repair
Repair Price: $ 614.00
Purchase
CSL Part Number: 73048

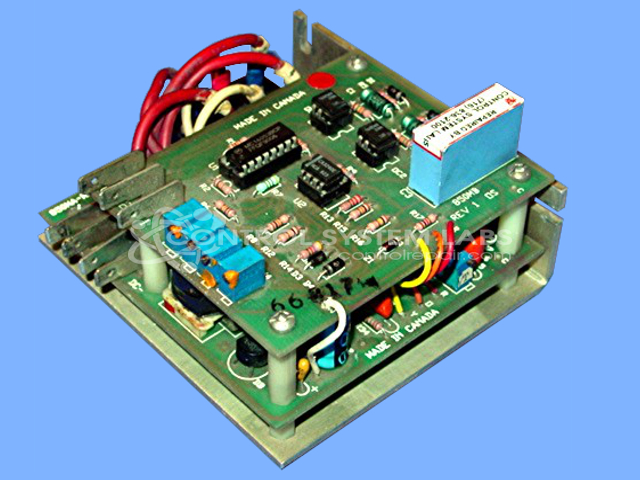

Product Overview: The 336 Multi-Stretch Motor Board (Orion 850-MA-R1 OS W/850MB) is a DC motor speed controller used in paper processing and material handling equipment. It provides variable speed control through adjustable voltage output, typically operating motors at 69-115 VDC. The board features adjustable potentiometers for speed ramping and output control, with external 15 VDC input for operation enabling. Commonly found in multi-stretch systems requiring precise motor control.
Category: Motor Controls
Manufacturer: Orion
Manufacturer Part Number: 850-MA-R1 OS W/850MB
Common Failures
This product has been reported as not operational, often due to defective or aging components such as capacitors. Symptoms include the motor not reaching the expected output voltage or failing to maintain consistent speed.
Repair Approach
Repairs may involve replacing defective components and performing preventative replacements to reduce the likelihood of future failures. Diagnostic testing is conducted to check for open circuits in transformers and to verify module functionality. Adjustments to component settings are made to match the customer's original settings when possible.
Testing & Quality
Testing procedures, including burn-in tests and motor functionality tests, are carried out to evaluate repair effectiveness. The equipment is run at customer-specified settings when available and tested to verify operation. Repaired units undergo testing stages before being approved for return.
Service and repair your broken Orion part
We can repair your Orion model 850-MA-R1 OS W/850MB in our facility. Let our skilled technicians get your Orion back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
