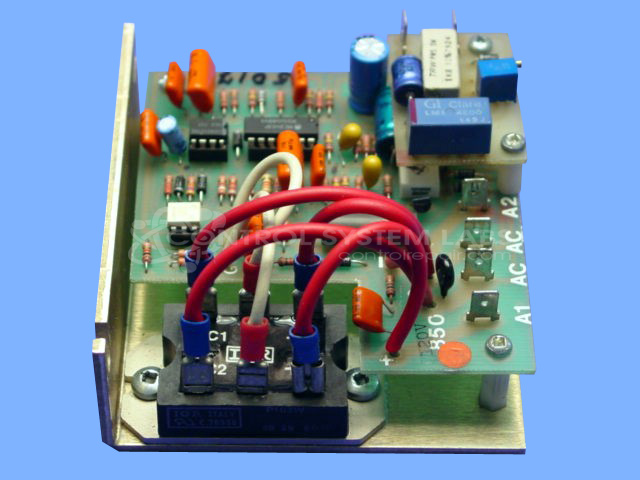

Orion 86396 336 Multi-Stretch Motor Board
Repair
Repair Price: $ 664.00
Purchase
CSL Part Number: 22806
Product Overview: A DC motor control board designed to regulate motor speed and torque in multi-stretch applications, commonly found in paper and web processing equipment. Features adjustable output up to 90V DC and optoisolated triggering for controlled motor operation.
Category: Motor Controls
Manufacturer: Orion
Manufacturer Part Number: 86396
Also Known As(AKA): 336 REV 5
Common Failures
Frequent issues include degraded capacitors and faulty solder joints. Other reported problems are shorted diodes and missing connections, such as the A2 post. Occasionally, units may experience surges before stopping, indicating potential opto-isolator failure.
Repair Approach
Repairs typically involve replacing electrolytic capacitors and addressing specific faulty components such as opto-isolators. For poor solder joint issues, resoldering and cleaning are performed to ensure stability and proper function. Missing components, like the A2 post, are supplied and secured as necessary.
Testing & Quality
All repaired units undergo thorough testing to ensure proper operation. Procedures include cleaning, resoldering, and multiple testing phases with some repairs validated with extended burn-in tests. The consistent replacement of capacitors and targeted component inspection contribute to restoring the product to serviceable condition.
Service and repair your broken Orion part
We can repair your Orion model 86396 in our facility. Let our skilled technicians get your Orion back in operation quickly.
