Repair
Repair Price: $ 5,572.00
Purchase
CSL Part Number: 80141

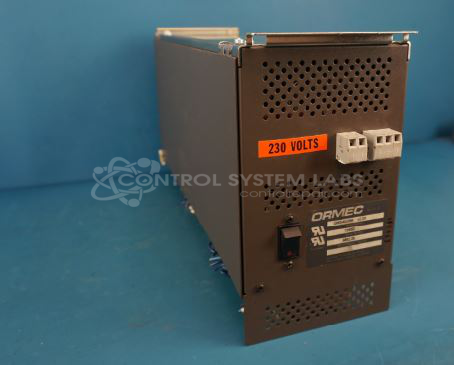

Product Overview: The Ormec Generation III is a DSP-based multi-axis motion controller introduced in 1990 and discontinued in 2013. It coordinates precise motion control across multiple servo axes in automated manufacturing equipment, packaging machinery, and industrial robotics. This version (GN3-40/2MI V2.2D) operates on 220VAC and features modular I/O with digital DC input and output modules, onboard power supply with multiple voltage rails (5V, ±12V), and battery-backed memory retention. The system interfaces with servo drives and motors through dedicated interconnecting cables for complete motion system integration.
Category: Servo Controls
Manufacturer: Ormec Systems Corp
Alternate Manufacturer Names: Ormec Systems
Manufacturer Part Number: GN3-40/2MI V2.2D
Other Synonyms: Ormec Systems
GEN3 Introduced in 1990 Obsolete 2013
Common Failures
Common issues reported include input module failures, DC input concerns, power supply capacitor deterioration, battery voltage inconsistencies, and unseated cards in the chassis.
Repair Approach
Repairs may involve replacing defective input modules and capacitors within the power supply. Preventative measures can include replacing aged or potentially failing capacitors and batteries. Re-seating cards and ensuring all connections are secure also forms part of the routine repair process.
Testing & Quality
Post-repair, units undergo power-on testing to verify operational status. This includes confirming the illumination of power indicators and verifying activation of input and output modules with external power supplies. Secondary power supply voltages are also verified to meet expected specifications. Comprehensive system tests may be limited when interconnecting cables are unavailable.
Service and repair your broken Ormec Systems Corp part
We can repair your Ormec Systems Corp model GN3-40/2MI V2.2D in our facility. Let our skilled technicians get your Ormec Systems Corp back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
