CSL Part Number: 82352

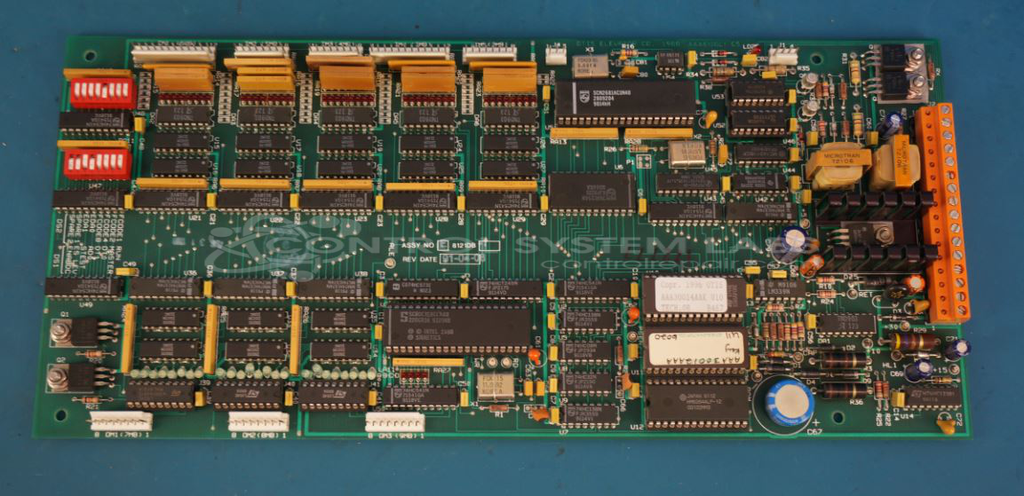

Product Overview: The Otis AAA610GL1 CS is a microprocessor-based control board used in Otis elevator systems. It features dual microcontrollers, multiple power supply rails (+5V, +10V, +30V), EPROM memory for system programming, RAM with battery backup, and extensive I/O circuitry for managing elevator operations. The board includes test points for diagnostics and uses DIP switches for configuration. It controls critical elevator functions including motor operation, safety systems, and floor positioning. Common applications include passenger and freight elevators in commercial and residential buildings.
Category: Control Board
Manufacturer: Otis
Manufacturer Part Number: AAA610GL1 CS
Common Failures
Common issues reported with this product include lack of output, which may be related to EPROM components, heat-related damage near resistor packs, crystal oscillator faults, or low voltage levels at specific capacitors. Actual failure modes can only be determined through evaluation of the specific unit.
Repair Approach
Our repair approach typically involves visual inspection and in-depth evaluation to identify the root cause. Depending on findings, repair may include component-level diagnostics, replacement of faulty parts such as EPROMs or voltage-related components, and testing of microcontroller and I/O circuits. For units containing data in RAM or similar memory, component replacement requires careful handling, though data preservation cannot be guaranteed.
Testing & Quality
Testing includes voltage verification at multiple test points and functional power-up testing as appropriate for the unit type. Time and Materials repair work is billed for labor and material spent attempting repair and is not warrantied. We will provide updates once evaluation is complete and before repair work begins.
Limited Repair
The Otis part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Otis part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
