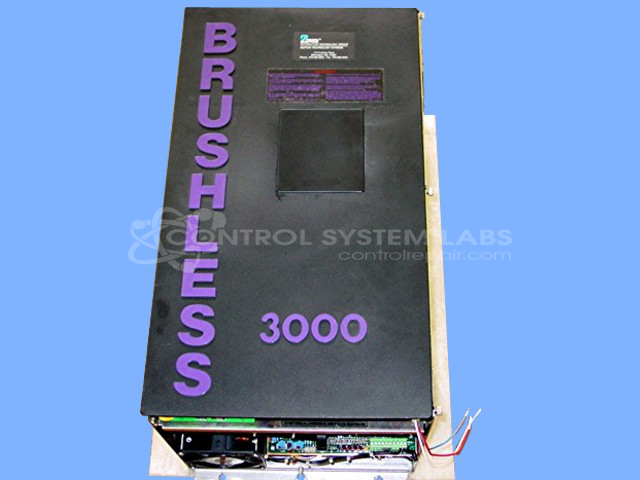

Pacific Scientific C0753.N4CH000NNN1 3000 75 HP DC Motor Control
Repair
Call for price
Purchase
CSL Part Number: 33823
Product Overview: A 75 HP DC motor control that regulates speed, torque, and direction of DC motors in industrial machinery and drive systems. It features IGBT output modules, a DC bus supply with contactor, cooling fans, and resolver-based feedback for closed-loop motor operation.
Category: DC Motor Controls
Manufacturer: Pacific Scientific
Manufacturer Part Number: C0753.N4CH000NNN1
Should have motor with feedback for proper testing.
Common Failures
Common issues reported include failed output modules, particularly those near motor terminals. Such failures may affect control operation and typically require component replacement.
Repair Approach
Repairs may involve replacement of components such as output modules, diodes, transistors, and fuses. Following component replacement, DC supplies and bus contactors are verified as part of the repair process.
Testing & Quality
Due to equipment requirements, certain tests cannot be performed in-house. We recommend that customers verify motor and external circuitry operation before reconnecting the controller. Final operational testing should be conducted in the customer's application.
Service and repair your broken Pacific Scientific part
We can repair your Pacific Scientific model C0753.N4CH000NNN1 in our facility. Let our skilled technicians get your Pacific Scientific back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
