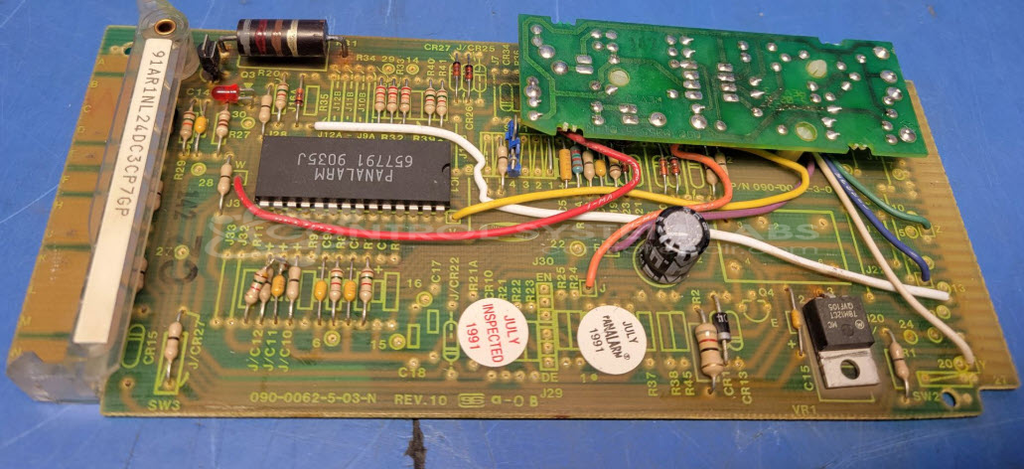

Panalarm 91AR1NL24DC3CP7GP Control Board
Repair
Call for price
Purchase
CSL Part Number: 118803
Product Overview: The Panalarm 91AR1NL24DC3CP7GP is an annunciator control board from the Series 90 family, designed to monitor and alert operators to alarm conditions in industrial process control systems. It operates on 24VDC and provides visual and audible alarm indication for critical parameters. Commonly found in power generation facilities, it monitors conditions such as condensate chemistry, sodium levels, and other process variables. The board features a modular design with a daughter card configuration and includes voltage regulation circuitry for stable operation.
Category: Annunciator
Manufacturer: Panalarm
Manufacturer Synonyms: AMETEK
Manufacturer Part Number: 91AR1NL24DC3CP7GP
please include symptoms and wiring diagram for the panel this is from.
```html
Common Failures
Common issues with this unit include alarms related to high condensate sodium levels. Physical damage often includes failed capacitors, damaged resistors, malfunctioning voltage regulators, and damaged standoff components.
Repair Approach
Repairs generally involve replacing faulty components such as capacitors, carbon resistors, voltage regulators, and damaged standoffs. Additional repairs may include addressing trace damage near affected components.
Testing & Quality
Testing may be limited due to the unavailability of certain components required for full functional tests. Repairs typically include a power-up test to verify component functionality, checking for overheating, and measuring current draws. Full function tests may be constrained by the absence of complete testing assemblies.
```Limited Repair
The Panalarm part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Panalarm part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
