Repair Price: $ 394.00
Purchase
CSL Part Number: 80525

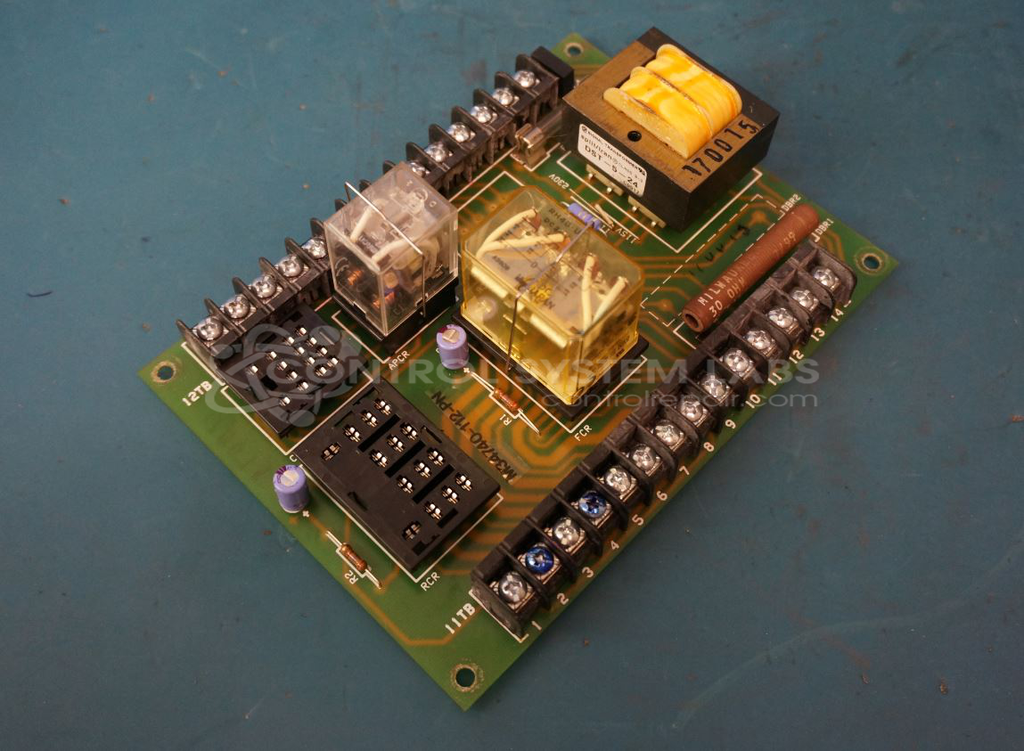

Product Overview: The Reverse Option Relay Board (M34740-112-PN) is a control card used in Pandjiris turning roll systems to provide directional control for motor-driven welding positioners and rotators. It interfaces with the main control system to reverse motor rotation, typically through relay switching logic. The board includes a 24VDC control circuit with multiple DPDT and 4PDT relays, electrolytic capacitors, and a transformer configurable for different input voltages. Common applications include pipe welding turnrolls and vessel rotators requiring bidirectional positioning.
Category: Motor Controls
Manufacturer: Pandjiris
Manufacturer Synonyms: Panjiris Weldmant
Manufacturer Part Number: M34740-112-PN
Series: PANDJIRIS Turning Roll Controls
Also Known As(AKA): 24CA0012
Common Failures
Common issues reported for this product include defective electrolytic capacitors, weak solder joints, damaged relays, and burnt-out resistors. Grounding errors have also been identified as a cause of relay and resistor damage. Customers encountering similar problems may benefit from professional evaluation and repair services.
Repair Approach
The standard repair process involves replacing defective components, such as relays and capacitors, and addressing weak solder joints. Additional measures may include adjusting standoffs to prevent contact issues and repairing burn damage on the PCB. These steps are typical for restoring the product to serviceable condition.
Testing & Quality
Repaired units undergo testing to verify functionality, which may include burn-in tests and other functional evaluations. Each unit is reviewed by a technician to verify that the repairs address the identified issues. Units that pass all required tests are considered serviceable and ready for operational use.
