Repair
Repair Price: $ 1,944.00
Purchase
CSL Part Number: 72080

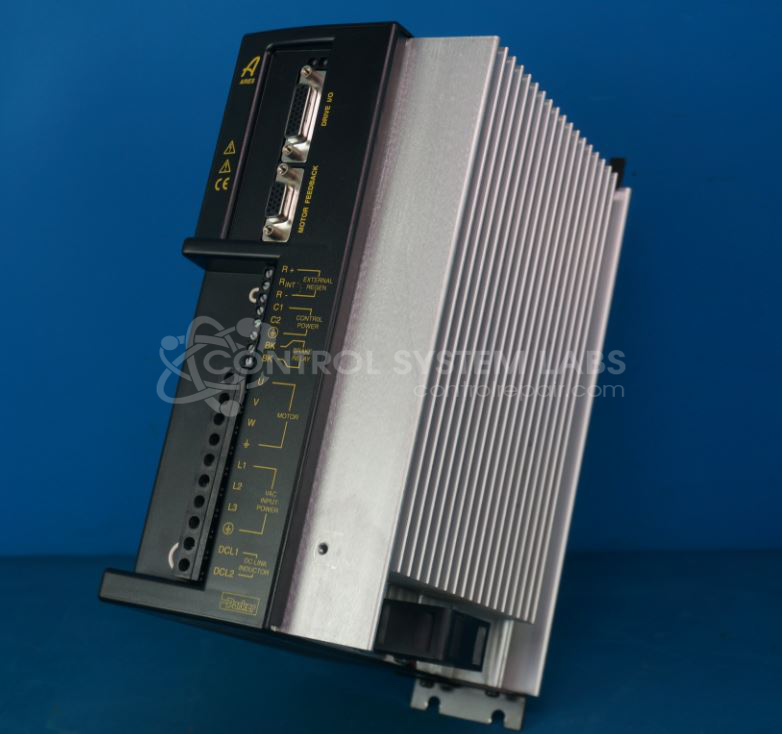

Product Overview: The Parker Hannifin AR-20AE is a 2000-watt analog servo drive from the Aries series, delivering 10 amps RMS continuous output for controlling brushless servo motors. It provides three-phase AC motor drive output with encoder feedback and interfaces via RS-232 or RS-485 serial communication for configuration and control. The drive operates from single or three-phase AC input and is commonly used in industrial automation applications requiring precise motion control, including packaging machinery, material handling systems, and manufacturing equipment. Configuration is performed using Parker's Aries Support Tool software, which allows motor parameter setup and servo tuning adjustments.
Category: Servo Controls
Manufacturer: Parker Hannifin
Alternate Manufacturer Names: Parker Motion
Manufacturer Part Number: AR-20AE
Series: Aries Series Servo Drive
Other Synonyms: Parker Motion
Common Failures
This product has experienced various issues, including units that do not boot, communication faults, incorrect motor responses, and defective components such as communication chips and capacitors. Some units have exhibited power supply issues.
Repair Approach
Repairs have involved replacing defective components such as capacitors and communication chips. Diagnostic tests are conducted using oscilloscopes and multimeters to identify defective parts. In certain cases, reconfiguring system settings or performing resets has resolved communication issues. Some units have been determined to be beyond economic repair due to component availability or other factors.
Testing & Quality
Repaired units undergo testing, including burn-in tests with motors, to confirm operational status. Units that pass evaluation are returned as serviceable. Some units may not pass final evaluation due to communication issues or other faults identified during testing.
Service and repair your broken Parker Hannifin part
We can repair your Parker Hannifin model AR-20AE in our facility. Let our skilled technicians get your Parker Hannifin back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
