Repair
Repair Price: $ 888.00
Purchase
CSL Part Number: 28505

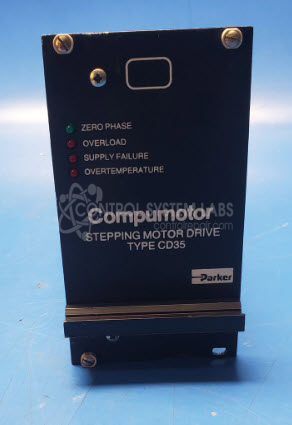

Product Overview: The Parker Hannifin CD35M is a 6-amp stepping motor drive from the CD Series designed to control stepper motors in precision motion applications. It provides accurate positioning and speed control for automated equipment. Commonly used in grinding machines and other industrial machinery requiring precise incremental motion control. The drive accepts step and direction pulse inputs and delivers regulated current to stepper motor windings. Part of Parker's Compumotor product line for industrial automation.
Category: Motor Controls
Manufacturer: Parker Hannifin
Manufacturer Part Number: CD35M
Series: CD Series Stepper Motor Drives
Common Failures
The Compumotor CD35 Drive used on the Walters HMC150 Grinder has been observed to experience issues where the motor will not accelerate. In multiple cases, the specific cause could not be determined during evaluation, resulting in a 'No Fault Detected' status upon testing.
Repair Approach
Preventative replacements may include electrolytic capacitors to enhance reliability. When defective components are identified, such as a switching voltage regulator, they are addressed to resolve acceleration problems.
Testing & Quality
Units are tested according to CSL protocols, which may include Burn-In Tests with motors, to verify functionality and performance. Units that pass testing are returned as serviceable.
Service and repair your broken Parker Hannifin part
We can repair your Parker Hannifin model CD35M in our facility. Let our skilled technicians get your Parker Hannifin back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
