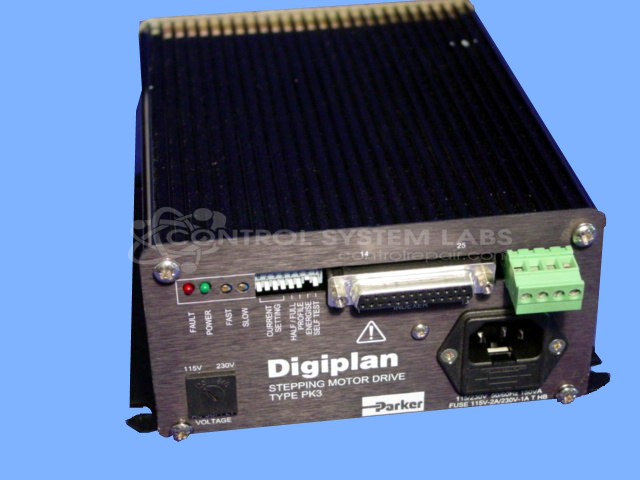

Parker Hannifin PK3 Digiplan Stepping Motor Drive

Repair

Repair Price: $ 916.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/34939/image_1920?unique=4f232fa
  • Condition

Purchase Price: $ 0.00 $ 0.00 916.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 15606
Category: Motor Controls
Manufacturer: Parker Hannifin
Manufacturer Part Number: PK3

Common Failures

Several common issues have been identified with this product, including shorted outputs, over-heating of integrated circuits (ICs), blown fuses, non-functional motors, and incorrect voltage settings. Incomplete stepper motor rotation was also reported when used in specific applications, although other functions performed as expected.

Repair Approach

Repairs typically involve replacing faulty components such as ICs, fuses, and connectors. The process often includes disassembly, inspection, re-soldering connections, and adjusting settings. Components like ICs and fuses are frequently replaced due to damage, and problems caused by incorrect voltage settings are corrected by setting the power switch appropriately.

Testing & Quality

After repairs, units are tested to verify proper functioning. This includes running them at both 120V and 240V with various load conditions and conducting temperature stress tests. Units are commonly subject to burn-in tests ranging from 30 minutes to several hours to verify stability. These testing methodologies help verify that the repairs restore functionality to the devices.

Service and repair your broken Parker Hannifin part


We can repair your Parker Hannifin model PK3 in our facility. Let our skilled technicians get your Parker Hannifin back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
