Repair
Repair Price: $ 928.00
Purchase
CSL Part Number: 13400

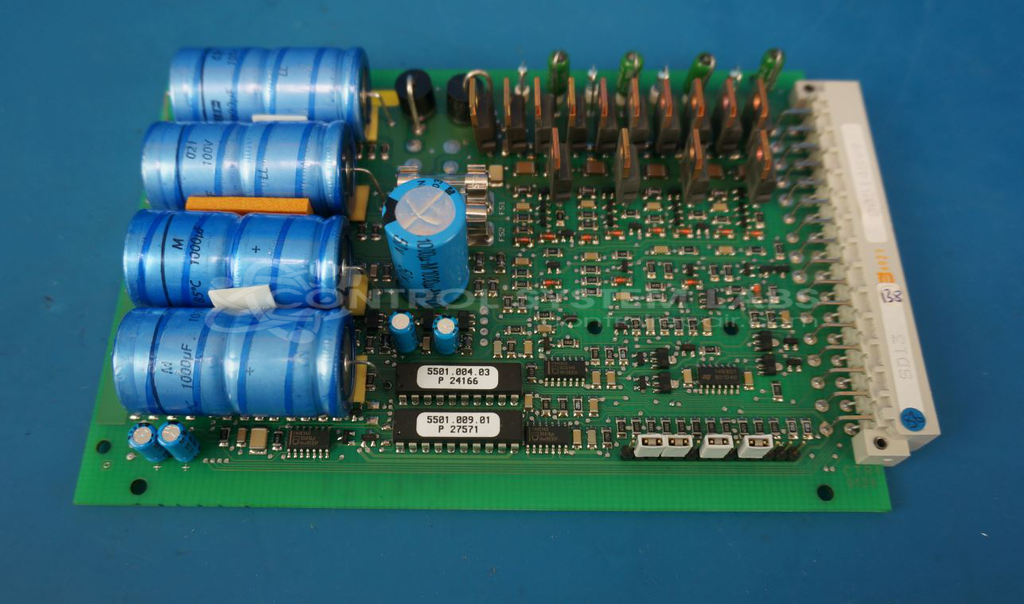

Product Overview: The Parker Hannifin SD13 is a 3-amp stepper motor drive board designed for full-step and half-step operation. It provides precise motion control in industrial automation applications including machine tools, positioning systems, and manufacturing equipment. The drive accepts standard step and direction signals to control bipolar stepper motors. This compact board-level controller is part of Parker's SD series and is compatible with various motion control systems requiring moderate current capacity.
Category: Stepper Controls
Manufacturer: Parker Hannifin
Alternate Manufacturer Names: COMPUMOTOR DIV
Manufacturer Part Number: SD13
Also Known As(AKA): 1408.102.08
Other Synonyms: COMPUMOTOR DIV
Common Failures
A frequently reported issue with this product is failure of the X-axis functionality. During evaluation, power supplies may activate correctly, but output from the function generator and stepper motor may be absent, which can indicate an internal connection or component fault.
Testing & Quality
Initial diagnostic testing includes applying a 24VDC power supply to verify power activation and connectivity. Units that exhibit faults may not pass the comprehensive testing phase designed to confirm full functionality. Further investigation can be limited when detailed schematics or proprietary documentation are not available.
Repair Approach
When further diagnostics or repairs cannot be performed due to lack of available documentation or replacement parts, the unit may be classified as Beyond Economic Repair. Any decision to discontinue repair work is made with customer approval when restoration to full functionality is not feasible.
Service and repair your broken Parker Hannifin part
We can repair your Parker Hannifin model SD13 in our facility. Let our skilled technicians get your Parker Hannifin back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
