Repair
Repair Price: $ 1,994.00
Purchase
CSL Part Number: 106722

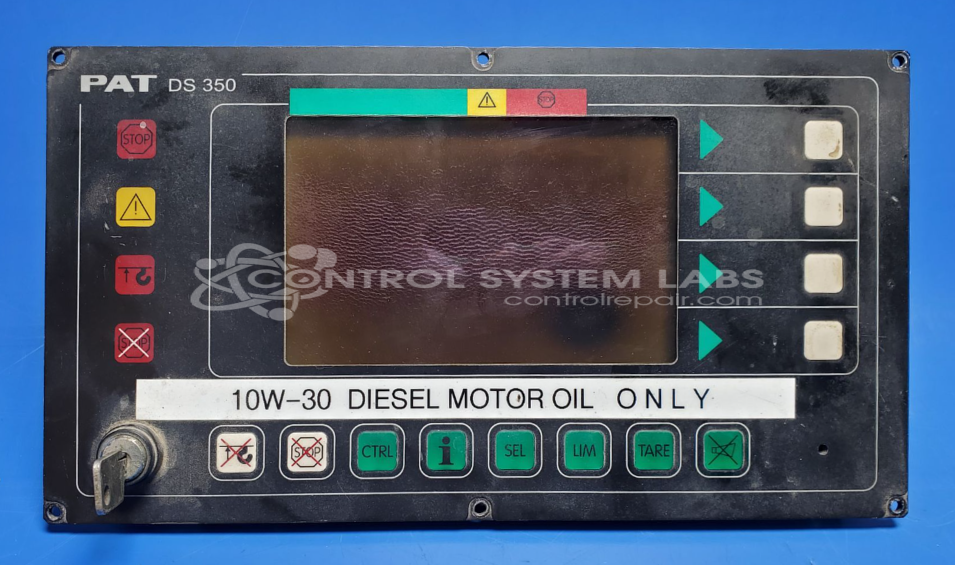

Product Overview: The PAT Hirschmann DS350 (also known as IK350/1318) is an operator control panel used for human-machine interface in industrial automation systems. It features a 320x200 LCD display and is designed for machine control and monitoring applications. The panel typically integrates input controls with visual feedback, allowing operators to interact with automated equipment in manufacturing, processing, or material handling environments. These panels are commonly found in older industrial machinery requiring dedicated operator stations.
Category: Operator & Control Panels
Manufacturer: PAT Hirschmann
Manufacturer Part Number: DS350
Also Known As(AKA): IK350/1318
Please send wiring diagram and manuals/software with the item for repair, include complete problem description with pictures if possible. If LCD is defective parts may not be available. Please note we may not be able to test all functions.
Common Failures
The most commonly reported issue with this product is that the display does not power up. This problem is often associated with a defective display component.
Repair Approach
In cases where the display does not power on, the repair may involve replacing the defective LCD display. Given that this is an obsolete model, sourcing a compatible replacement can be challenging and may require locating specialized suppliers. We will evaluate the unit and provide a quotation before any repair work begins.
Testing & Quality
Products undergo diagnostic testing to identify display issues. Additional testing may be required due to factors such as aged conformal coatings, which can affect the evaluation process. Verification steps are performed to support accurate diagnosis of the fault.
Limited Repair
The PAT Hirschmann part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your PAT Hirschmann part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
