Repair Price: $ 340.00
Purchase
CSL Part Number: 75551

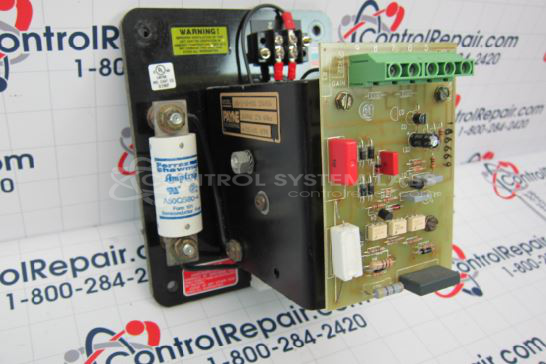

Product Overview: The Payne Engineering 18D-2-30-SOL is a single-phase solid-state relay (SSR) rated for 240V at 27 amps, designed for controlling constant resistance loads. It uses SCR-based power control circuitry to regulate heating elements and other resistive loads in industrial applications. Common uses include paper processing equipment, heat sealing systems, and temperature control applications. The unit features zero-crossing or phase-angle firing control and is suitable for applications requiring reliable proportional power delivery to resistive heating elements.
Category: Power Controls
Manufacturer: Payne Engineering
Manufacturer Part Number: 18D-2-30-SOL
Single Phase Solid State Relay (SSR) for Constant Resistance Loads
Common Failures
This product may experience power output issues. Such failures can be attributed to internal corrosion, which may affect multiple components and interfere with normal operation. In some cases, affected products may exhibit smoking when powered, suggesting internal damage.
Repair Approach
The repair process may involve addressing corrosion through cleaning and component replacement of items such as resistors, transistors, and diodes. The feasibility of repair depends on the extent of damage and parts availability. If critical components such as the transformer are unavailable or excessively damaged, the unit may be Beyond Economic Repair.
Testing & Quality
After repairs are completed, units undergo testing to verify functionality. We would be glad to review the item and provide a quotation once the unit is received and evaluated. The outcome depends on the specific condition of each unit and parts availability.
Service and repair your broken Payne Engineering part
We can repair your Payne Engineering model 18D-2-30-SOL in our facility. Let our skilled technicians get your Payne Engineering back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
