Repair
Repair Price: $ 1,060.00
Purchase
CSL Part Number: 74846

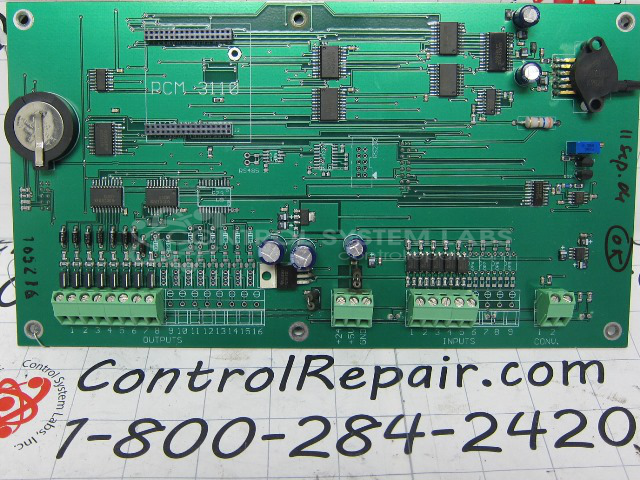

Product Overview: The Rabbit Based IO Card is a specialized control board used in Pet All blow molding machines. It provides 16 digital outputs and 9 inputs for process control and monitoring. The board uses a Rabbit microprocessor and includes onboard pressure sensing capability (0-10 kPa range) for material handling operations. A CR2032 lithium coin cell battery maintains memory and configuration data when power is removed, essential for retaining machine parameters between production runs.
Category: Control Board
Manufacturer: Pet All Manufacturing
Manufacturer Part Number: BLOW MOLDING IO CARD
May require operator controls to test. Contact CSL.
Common Failures
This product may experience issues related to battery failure, which can result in memory loss when the unit is powered off. Pressure sensors may also report inaccurate readings, indicating potential sensor deterioration.
Repair Approach
Diagnostic evaluation is performed to identify faulty components such as the battery and pressure sensor. Repair typically involves replacing defective parts. Each unit is inspected and tested following CSL procedures to verify proper functionality.
Testing & Quality
Repaired units undergo burn-in testing under load to confirm reliability and functionality. This process includes multiple levels of inspection and testing to ensure quality repair outcomes.
Limited Repair
The Pet All Manufacturing part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Pet All Manufacturing part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
