Pet All Manufacturing BLOW MOLDING IO CARD WITH RABBIT CPU Rabbit Based IO Card 16 Out 9 In Converter
Repair
Repair Price: $ 1,060.00
Purchase
CSL Part Number: 86544

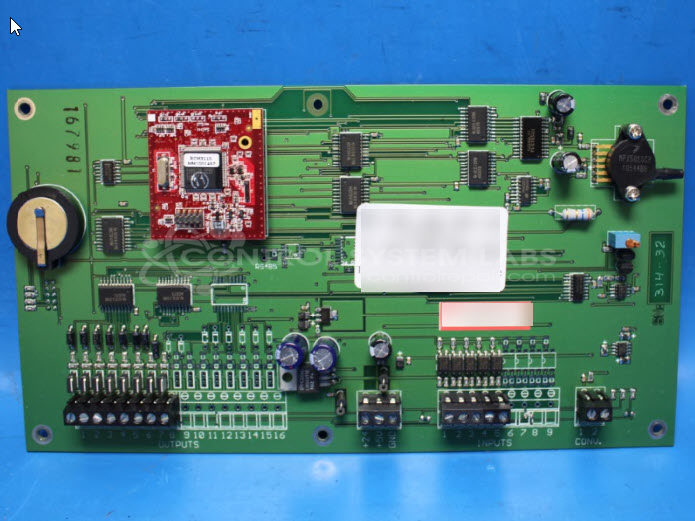

Product Overview: The Rabbit Based IO Card is an industrial control board used in Pet All blow molding machines. It features a RabbitCore RCM3110 CPU module and provides 16 digital outputs and 9 digital inputs for machine control and monitoring. The board includes pressure sensing capability via an MPX5010GP sensor and uses a CR2032 lithium battery to maintain calibration settings and program memory. It interfaces with leak detection systems and bottle testing equipment in automated blow molding production lines.
Category: Control Board
Manufacturer: Pet All Manufacturing
Manufacturer Part Number: BLOW MOLDING IO CARD WITH RABBIT CPU
Series: Rabbitcore CPU
May require operator controls to test. Contact CSL.
Common Failures
Frequent issues with this product include defective battery and module components. Symptoms often involve the device losing calibration, entering self-test mode unexpectedly, or producing incorrect readings.
Repair Approach
We evaluate each unit individually to determine the specific repair needs. Repairs may involve replacing faulty components such as battery cells and module parts. For calibration issues and unexpected self-tests, we perform detailed functional analysis and electronic testing. In cases of incorrect pressure readings, sensor evaluation and potential replacement may be required. Once the unit is received and reviewed, we can provide a quotation before any repair work begins.
Testing & Quality
Post-repair testing protocols include burn-in tests, functional verification, and review by our technicians to confirm the product functions correctly after repairs.
Limited Repair
The Pet All Manufacturing part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Pet All Manufacturing part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
