Philips PCB-453D Data Distribution Unit - Ribbon Controller
Repair
Call for price
Purchase
CSL Part Number: 87024

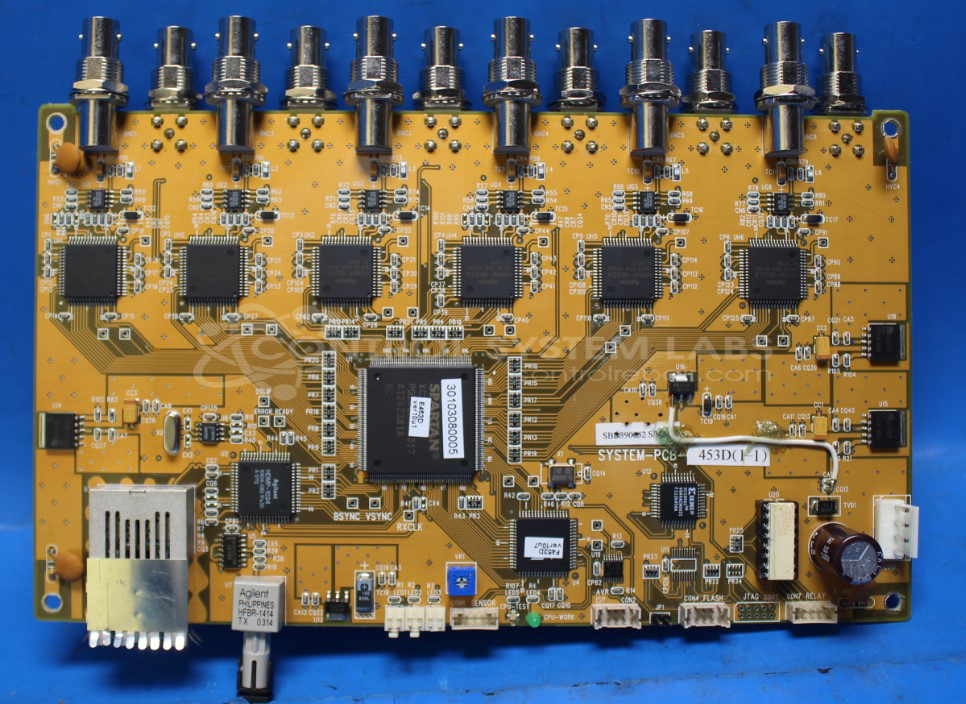

Product Overview: A data distribution unit controller board that drives indoor fascia video ribbon displays in arenas and stadiums. Built around an FPGA that processes incoming video and feeds multiple high-speed serializer transmit chips, it distributes display data across large-format LED ribbon signage.
Category: Video Card
Manufacturer: Philips
Manufacturer Part Number: PCB-453D
Also Known As(AKA): PCB453
Common Failures
Units submitted for repair commonly exhibit video output failures or dim output. Some units are received with no fault identified during initial evaluation.
Repair Approach
Video output issues are typically addressed by identifying and correcting shorts between power planes, such as where a 5V input voltage feeds into a 4V bus. Repairs may include component replacement, testing connections between key ICs, and other diagnostic procedures as needed. For dim output conditions, transmit and receive chips as well as FPGA inputs and outputs are evaluated to identify faults. Component replacement may be required based on findings.
Testing & Quality
All repairs include verification testing to confirm proper operation. Testing procedures include checking communication paths between critical ICs and evaluating component performance using test equipment. In some cases, the reported fault cannot be reproduced during evaluation.
Service and repair your broken Philips part
We can repair your Philips model PCB-453D in our facility. Let our skilled technicians get your Philips back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
