Repair
Call for price
Purchase
CSL Part Number: 101792

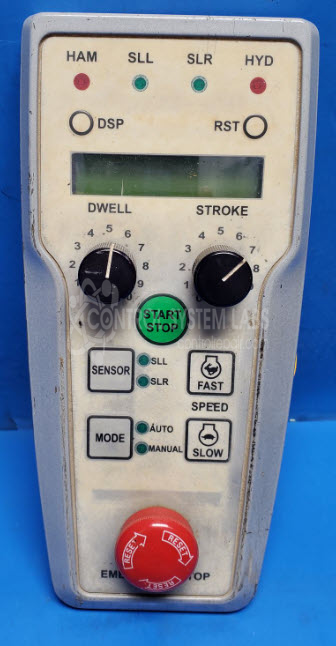

Product Overview: The Pilemer 702800-R03 is a handheld remote control pendant for International Construction Equipment IP3 hydraulic impact hammers used in pile driving and demolition applications. It features membrane keypad controls with LED indicators, an emergency stop button, and adjustable potentiometers for dwell time (0-1.4 seconds) and stroke time (0-1.9 seconds). The pendant includes operational mode selection (Auto/Manual), display functions, and status indicators for hydraulic and hammer systems, operating on 12VDC power.
Category: Pendant
Manufacturer: Pilemer
Manufacturer Part Number: 702800-R03
Limited Repair
The Pilemer part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Pilemer part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
