Repair
Repair Price: $ 892.00
Purchase
CSL Part Number: 81953

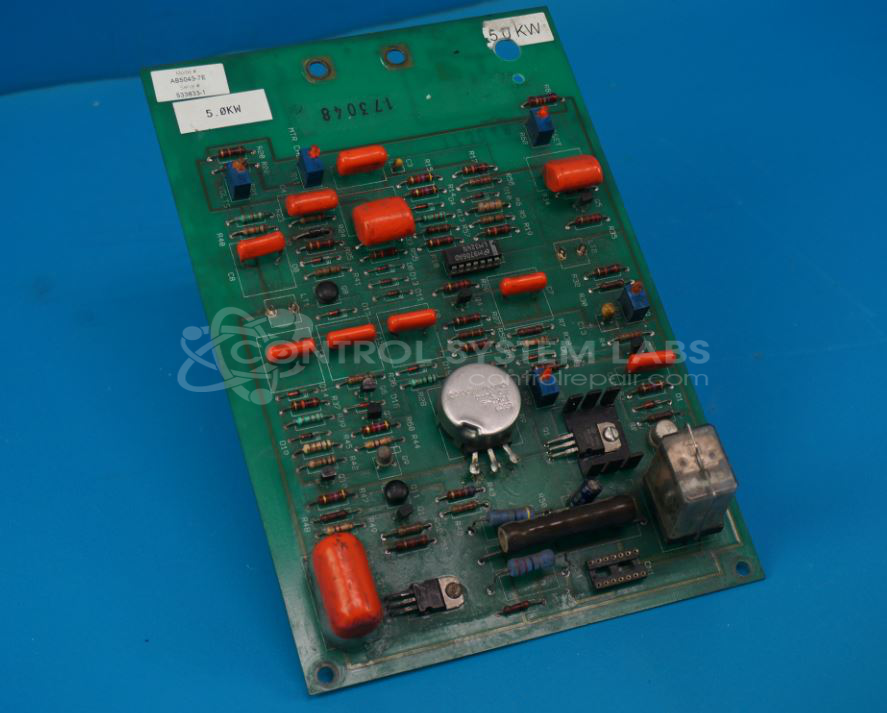

Product Overview: The Pillar Induction AB5043-7E is a control board designed for induction heating machines used in manufacturing and processing applications. It generates variable frequency outputs (high, low, and off states) based on DC input signals to regulate induction heating cycles. The board operates with dual-polarity DC power supply and uses analog signal processing through op-amps and discrete transistor circuits. It includes relay-based switching for output control and is commonly found in paper processing and industrial heating equipment where precise temperature control is required.
Category: Control Board
Manufacturer: Pillar Induction
Manufacturer Part Number: AB5043-7E
Common Failures
Units often arrive with component-level faults. Evaluation may identify issues such as defective op-amps, diodes, transistors, relay failures, or broken solder joints that can affect operation.
Repair Approach
We perform diagnostic testing to identify the root cause of failure. Repairs may involve resoldering connections, replacing defective components, and cleaning as part of our standard repair procedure.
Testing & Quality
After repairs are completed, units undergo functional testing. This includes verifying performance under varying inputs and conducting burn-in testing to ensure reliability. All repaired units are inspected for quality assurance before being approved for return.
Service and repair your broken Pillar Induction part
We can repair your Pillar Induction model AB5043-7E in our facility. Let our skilled technicians get your Pillar Induction back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
