Repair
Repair Price: $ 1,784.00
Purchase
CSL Part Number: 80229

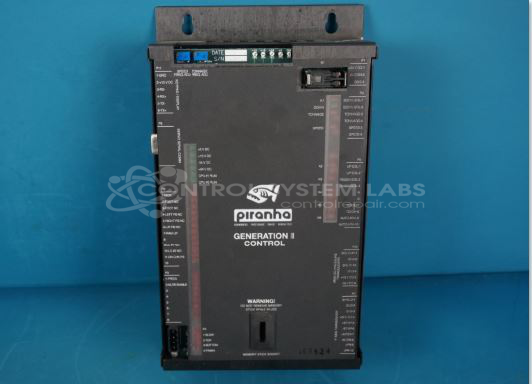

Product Overview: The Piranha Generation II is a press brake controller used to automate and control hydraulic press brake operations in metal fabrication. It manages ram positioning, speed control, and sequencing for bending processes. The system features a RabbitCore microprocessor module (typically RCM2000 or RCM3100), interfaces with a keypad/display unit and linear transducer for position feedback, and provides multiple digital I/O and relay-driven outputs for hydraulic valve control. Key components include RS422/RS485 transceivers for communication, onboard battery-backed memory for program storage, and DC-DC converters supplying ±15V, 5V, and 24V rails. The controller runs embedded firmware (various versions including 1.01, 1.04, 3.15, 3.17) and is commonly found in Piranha-branded press brakes ranging from 35-
Category: Control Assembly
Manufacturer: Piranha
Manufacturer Part Number: Generation II
Series: Press Press Brake Control
Also Known As(AKA): T2267
Common Failures
Units received for evaluation have shown issues related to component wear and power supply concerns. Common findings include faulty relays, transceivers, and batteries with insufficient voltage. Some units also show degraded electrolytic capacitors and corrosion on internal components. In some cases, previous repair attempts have left incorrect or damaged components that affect operation.
Repair Approach
Our repair process typically involves replacing faulty components such as relays and transceivers, addressing solder connections as needed, and cleaning areas affected by corrosion. When warranted, we may replace additional components as a preventative measure. For units with evidence of prior repair work, we review and correct any errors identified during our evaluation.
Testing & Quality
Repaired units undergo diagnostic testing to verify operational integrity. We have a complete test fixture, so we can troubleshoot your control effectively. Our testing process includes verification of voltages, inputs, and outputs, along with extended run testing to confirm sustained performance. Testing may identify remaining issues that could affect full functionality, which we address or report to the customer as appropriate.
Service and repair your broken Piranha part
We can repair your Piranha model Generation II in our facility. Let our skilled technicians get your Piranha back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
