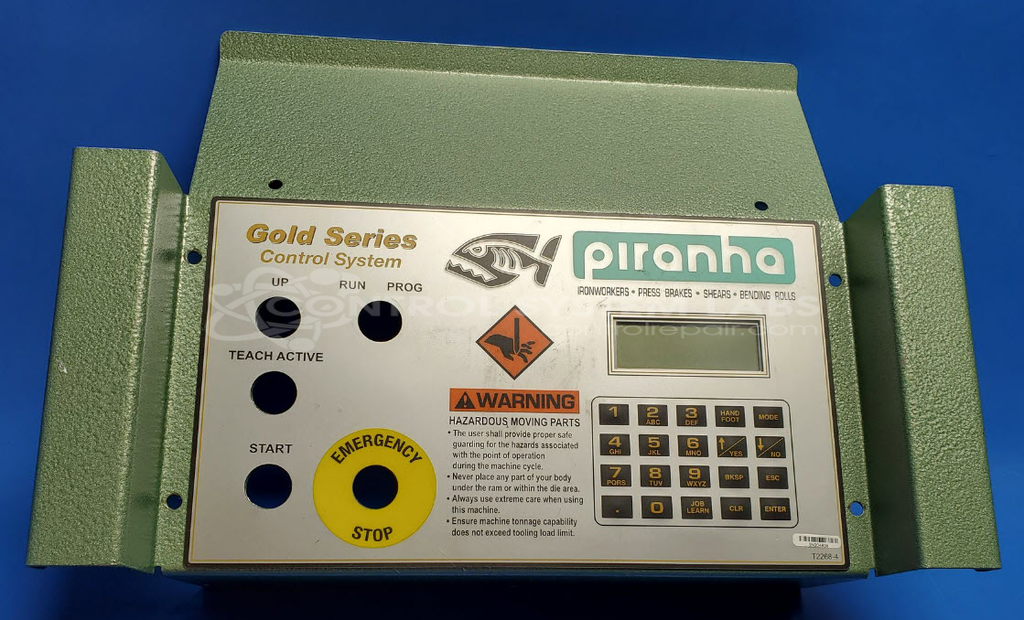

Piranha Gold Series Controller Press Brake Controller
Repair
Repair Price: $ 976.00
Purchase
CSL Part Number: 88650
Product Overview: The Piranha Gold Series Controller is a Generation II press brake control system that manages hydraulic press brake operations. It coordinates machine positioning, back gauge control, and operator interface communication through an integrated HMI. The controller features a RabbitCore RCM2000 microprocessor module with 512 kB RAM running at 25.8 MHz, multiple DC-DC converters for power distribution, and battery-backed memory for program retention. It supports various back gauge configurations and provides digital I/O for hydraulic valve control and sensor feedback in metal forming applications.
Category: Control Assembly
Manufacturer: Piranha
Manufacturer Part Number: Gold Series Controller
Series: Press Press Brake Control
Need to send the keypad / LCD assembly from the pedestal for testing
Common Failures
Frequently reported issues with this product include communication loss between control and HMI, firmware-related concerns, and backup battery faults. In some cases, units arrive with evidence of prior repair attempts that may have contributed to additional issues, such as damaged traces or component concerns. Other issues observed during evaluation have included capacitor degradation and module-level faults.
Repair Approach
Our repair process includes component-level diagnostics, correction of previously attempted repairs where feasible, and evaluation of software or firmware concerns. For units with corrosion-related damage, cleaning and inspection of affected areas are performed as part of the evaluation. Firmware updates or configuration adjustments may be recommended depending on findings. In cases where modules are found to be defective and replacement is required, we provide a quotation before proceeding.
Testing & Quality
Once repairs are completed, units undergo diagnostic testing to verify proper operation. This may include firmware verification, battery circuit checks, and functional testing using CSL test equipment. Extended run-in testing may be performed depending on the nature of the repair. All serviceable units are tested to confirm functionality before return shipment.
Service and repair your broken Piranha part
We can repair your Piranha model Gold Series Controller in our facility. Let our skilled technicians get your Piranha back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
