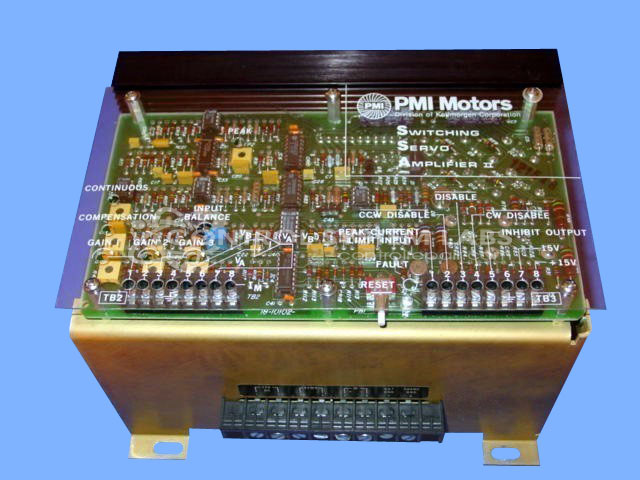

PMI Motors SSA-54-07-20 SSA 4 Quadrant Servo Amplifier
Repair
Repair Price: $ 1,152.00
Purchase
CSL Part Number: 33452
Category: Servo Controls
Manufacturer: PMI Motors
Manufacturer Part Number: SSA-54-07-20
Also Known As(AKA): KOLLMORGEN
Common Failures
The unit experienced random oscillation of the axis and faults on power up. Customers reported an inability to reset the device.
Repair Approach
To address the reported issues, missing wiring from the negative terminal of a bridge rectifier was replaced, along with two electrolytic capacitors. These components were replaced to stabilize the power supply and address the operational faults.
Testing & Quality
Following repair, the unit underwent comprehensive testing. DC supplies and bus supply were verified, and overall operation was validated. The unit was operated for three days to confirm proper function.
