Repair
Repair Price: $ 568.00
Purchase
CSL Part Number: 35360

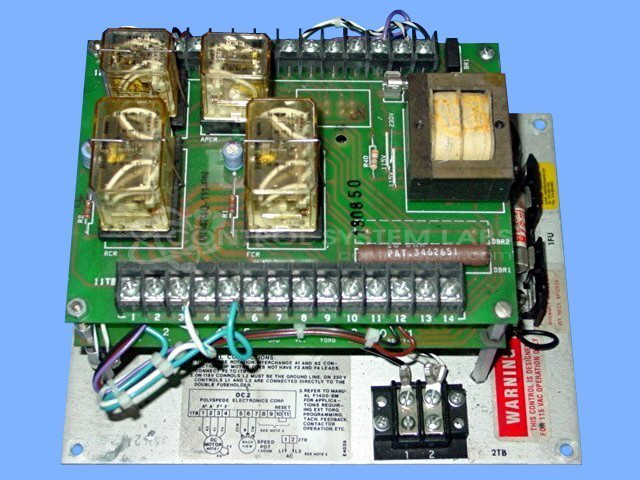

Product Overview: The OC2 Motor with Reverse is a Polyspede E1507 Series motor speed controller designed for paper processing equipment. It consists of a two-board set with an integrated power cube mounted on a common plate. The system provides bidirectional motor control with adjustable speed settings via potentiometer and supports tachometer feedback for closed-loop operation. It is commonly used in paper machine drive applications requiring reversible DC motor control.
Category: Motor Controls
Manufacturer: Polyspede
Manufacturer Part Number: E1507-02 with M34740-111
Common Failures
Common issues with the product include a malfunctioning potentiometer that requires significant pressure to operate correctly and defective electrolytic capacitors. It is also common to encounter defective solder joints, leading to intermittent functionality when the board is flexed or moved.
Repair Approach
Repairs typically involve replacing the defective potentiometer and electrolytic capacitors. Any minor corrosion is cleaned, and faulty solder joints are reflowed to ensure stable operation. Technicians may require a customer-supplied interconnect diagram to ensure proper wiring of the unit.
Testing & Quality
Once repairs are completed, the unit undergoes testing, including burn-in testing with a motor to verify operational integrity. The unit is checked to confirm that repair work has been completed according to CSL standards.
Service and repair your broken Polyspede part
We can repair your Polyspede model E1507-02 with M34740-111 in our facility. Let our skilled technicians get your Polyspede back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
