Repair
Repair Price: $ 872.00
Purchase
CSL Part Number: 86771

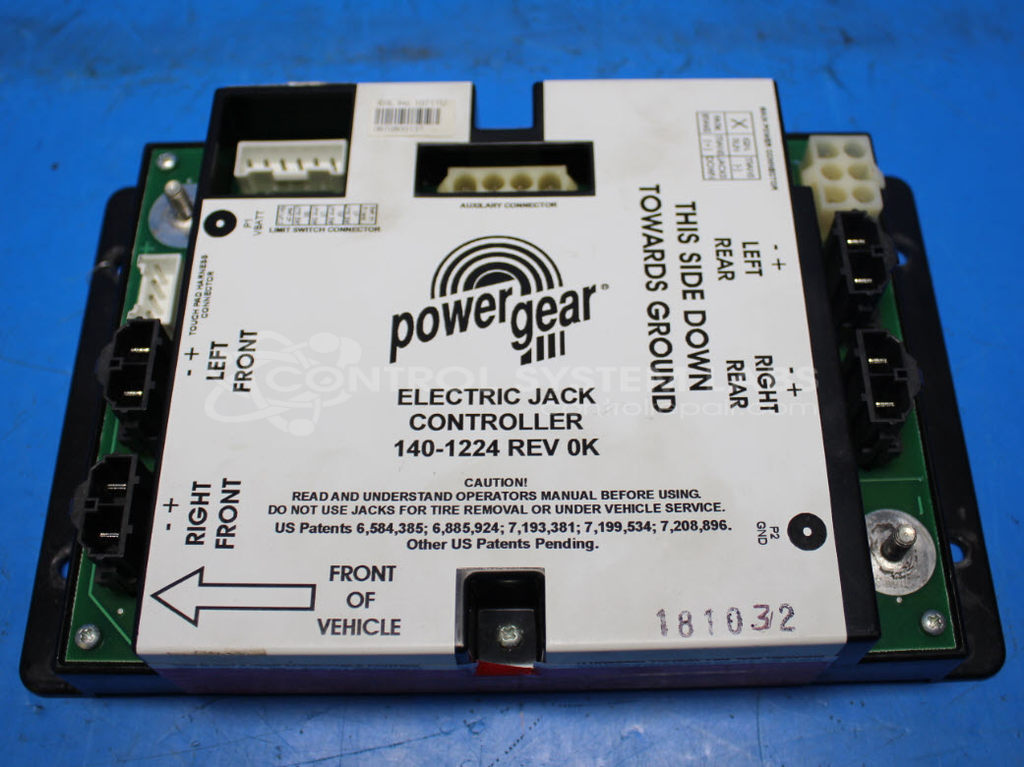

Product Overview: The Power Gear 140-1224 is an electronic controller for RV automatic leveling systems, managing up to four hydraulic or electric jacks (front left, front right, rear left, rear right). It communicates with a dashboard keypad, monitors limit switches to prevent over-extension or retraction, includes an internal level sensor for auto-leveling, and controls relays that supply power to individual leveling jacks. Common in motorhomes and towable RVs, it operates on 12VDC and requires ignition input to function. The controller monitors current draw per leg and stores calibration data for zero-point leveling.
Category: Control Module
Manufacturer: Power Gear
Manufacturer Synonyms: Versa\tek
Manufacturer Part Number: 140-1224 Rev 0K
Also Known As(AKA): 140-1224 Rev 0G
**Send your keypad AND controller** (see diagram) and we will test them to isolate the problem to the keypad, controller, or wiring/jacks (minimum $75 checkout fee may apply). Excessive burn damage or corrosion will result in additional costs.
Common Failures
Users frequently report issues with the Power Gear leveling controller not operating as expected. Common symptoms include jacks failing to extend or retract, error messages indicating jacks are down, and manual operation limited due to error states. Some issues are traced to external factors such as vehicle wiring, connections, or limit switches. Some reports indicate components like relays and connectors experiencing failure, which may be related to physical damage, corrosion, or installation factors.
Repair Approach
Repairs may involve replacing defective relays and connectors, restoring circuit traces, or conducting preventative maintenance such as replacing capacitors and cleaning components. Circuit board integrity may be restored through trace repair and conformal coating applications. Diagnostic testing is performed to confirm the unit's functionality. In some cases, evaluation reveals that reported controller faults are related to wiring or system configuration rather than controller defects.
Testing & Quality
Each unit undergoes a Level 5 testing process to evaluate communication with the keypad, extension and retraction of leveling legs, and signal processing. Testing may reveal that the controller is functioning correctly, suggesting that issues could be related to external wiring or operation. All units are tested on a specialized fixture, and testing procedures include burn-in tests with leveling legs to verify quality and reliability before the controller is returned.
Service and repair your broken Power Gear part
We can repair your Power Gear model 140-1224 Rev 0K in our facility. Let our skilled technicians get your Power Gear back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
