Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 86946

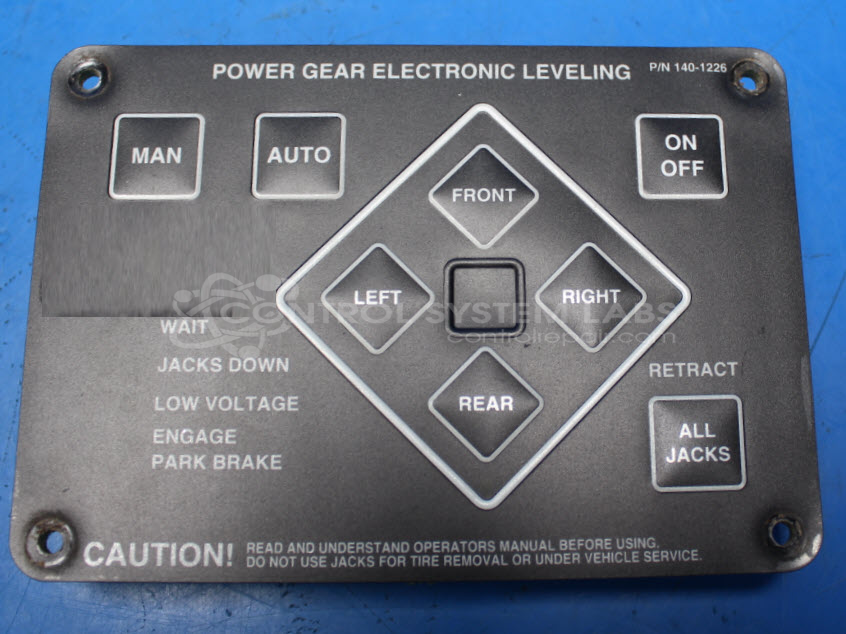

Product Overview: The PowerGear Keypad (Model 140-1226) is a user interface panel for the Power Gear 140-1224 RV leveling system, allowing operators to control hydraulic or electric jacks for motorhome stabilization. It features membrane switches with metal dome button contacts, status indicator LEDs, and communicates with the main controller via a proprietary interface. The keypad provides manual jack control, automatic leveling, and sensor override modes. It is typically mounted inside the RV cabin for convenient access during setup and operates on 12V DC power.
Category: Operator & Control Panels
Manufacturer: Power Gear
Manufacturer Synonyms: Versa\tek
Manufacturer Part Number: 140-1226
Send your keypad AND controller (see diagram) and we will test them to isolate the problem to the keypad, controller, or wiring/jacks (minimum $75 checkout fee may apply). Excessive burn damage or corrosion will result in additional costs.
Common Failures
Customers frequently report issues with incorrect signaling to leveling jacks, which may appear as a failure to raise or lower the jacks. In several instances, front jacks only move when directly powered, bypassing the controller. Additional issues include buzzers that do not stop or keypads entering error modes. Symptoms often trace back to button contact degradation or component configuration concerns.
Repair Approach
Repairs commonly involve evaluating and reconditioning button contacts, reapplying overlays, and reviewing component configuration. In cases where button contacts show signs of wear, they may be replaced or cleaned. Not all faults are reproducible during evaluation, which may result in limited repair actions or recommendations for further customer testing.
Testing & Quality
Units undergo testing, including burn-in tests and simulations to evaluate functionality. Units passing these tests with no detected faults may be returned with recommendations for testing in the customer's setup. Components identified as incompatible are returned with advisories to ensure proper configuration. Repairs are tested to verify functionality before return.
Service and repair your broken Power Gear part
We can repair your Power Gear model 140-1226 in our facility. Let our skilled technicians get your Power Gear back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
