Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 120777

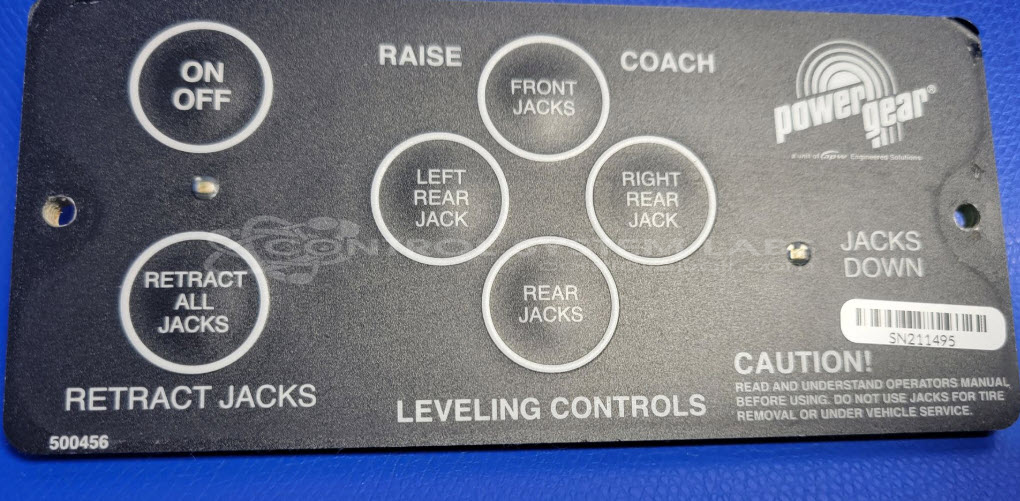

Product Overview: A membrane keypad control panel used to operate hydraulic leveling and jack systems, commonly found in RVs and similar vehicles. It provides push-button control for on/off power, retract-all, and individual front and rear jack functions, with integrated LED status indicators via an 11-pin harness where buttons switch to ground.
Category: Operator & Control Panels
Manufacturer: Power Gear
Manufacturer Synonyms: Versa\tek
Manufacturer Part Number: 500456

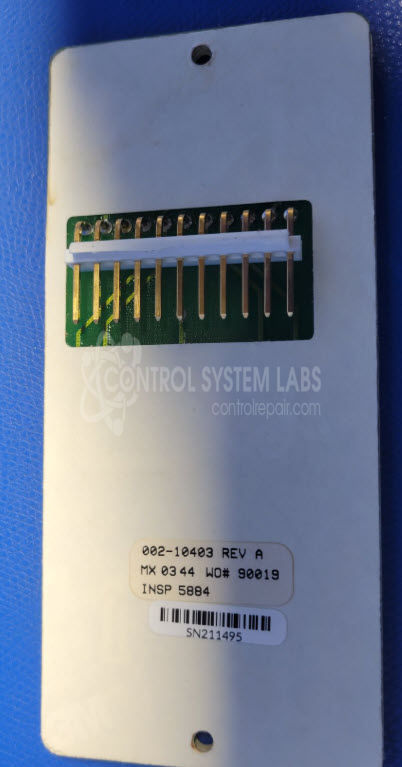

Also Known As(AKA): 002-10403 Rev A MX 0344
Send your keypad AND controller (see diagram) and we will test them to isolate the problem to the keypad, controller, or wiring/jacks (minimum $75 checkout fee may apply). Excessive burn damage or corrosion will result in additional costs.
Common Failures
Customers frequently report issues with incorrect signaling to leveling jacks, which may appear as a failure to raise or lower the jacks. In several instances, front jacks only move when directly powered, bypassing the controller. Additional issues include buzzers that do not stop or keypads entering error modes. Symptoms often trace back to button contact degradation or component configuration concerns.
Repair Approach
Repairs commonly involve evaluating and reconditioning button contacts, reapplying overlays, and reviewing component configuration. In cases where button contacts show signs of wear, they may be replaced or cleaned. Not all faults are reproducible during evaluation, which may result in limited repair actions or recommendations for further customer testing.
Testing & Quality
Units undergo testing, including burn-in tests and simulations to evaluate functionality. Units passing these tests with no detected faults may be returned with recommendations for testing in the customer's setup. Components identified as incompatible are returned with advisories to ensure proper configuration. Repairs are tested to verify functionality before return.
Service and repair your broken Power Gear part
We can repair your Power Gear model 500456 in our facility. Let our skilled technicians get your Power Gear back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
