Repair
Repair Price: $ 416.00
Purchase
CSL Part Number: 79567

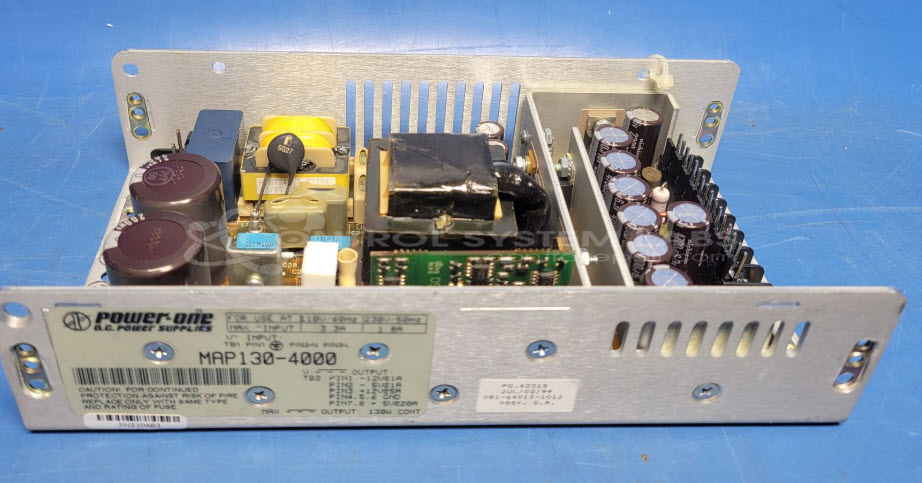

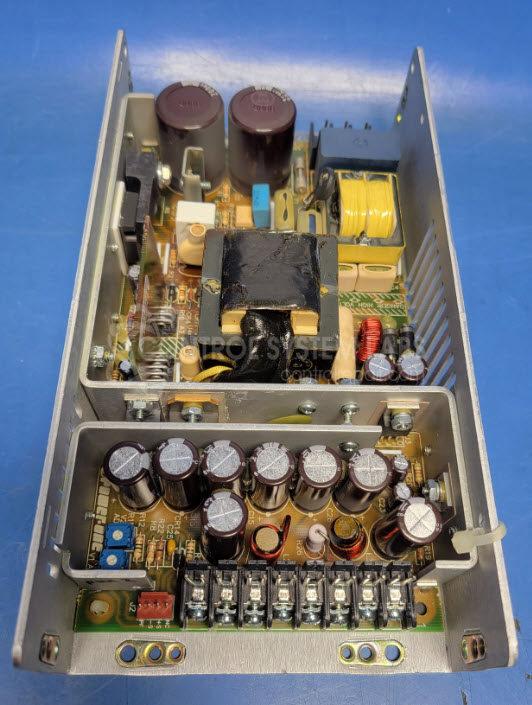

Product Overview: The MAP130-4000 is a quad-output switching power supply manufactured by Power-One, delivering four independent DC voltages: +5V at 20A, +12V at 5A, -5V at 1A, and -12V at 1A. This configuration is commonly used in industrial control systems, instrumentation, and legacy computing equipment that require multiple voltage rails from a single compact power source. It features adjustable output voltages and is designed for continuous operation in demanding industrial environments.
Category: Power Supply
Manufacturer: Power-One

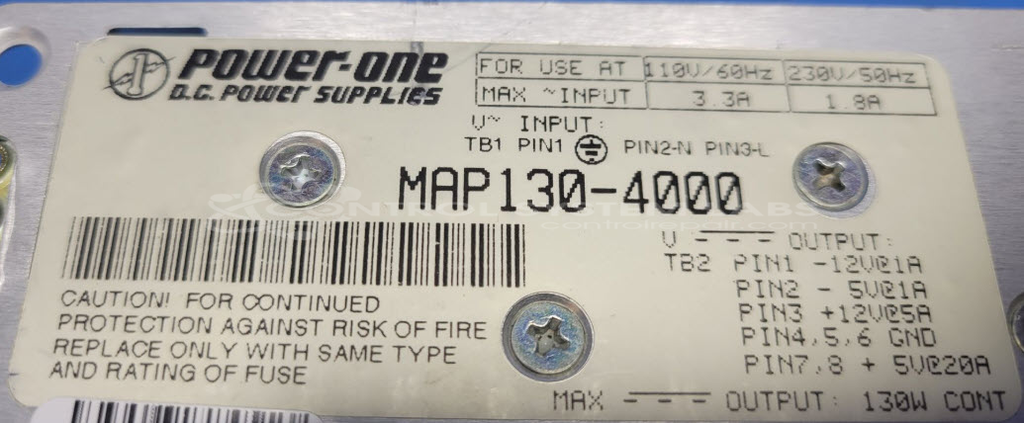

Manufacturer Part Number: MAP130-4000
Series: MAP130 Series
5V 20A, 12V 5A, -5V 1A, -12v 1A
Common Failures
Common issues reported have included defective components such as capacitors and resistors, as well as timing-related component failures. These conditions may result in inconsistent power delivery or operational instability.
Repair Approach
Repairs typically involve replacing defective capacitors, inspecting and reworking solder joints as needed, and verifying voltage levels under load. In some cases, power resistors and circuit traces may also be addressed. Optical components are verified as part of the repair process.
Testing & Quality
Units undergo comprehensive diagnostic testing, including extended burn-in tests with electronic load. Voltage points and solder joints are inspected to confirm reliability. Final testing includes adjustment of output voltages to meet specification.
Service and repair your broken Power-One part
We can repair your Power-One model MAP130-4000 in our facility. Let our skilled technicians get your Power-One back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
