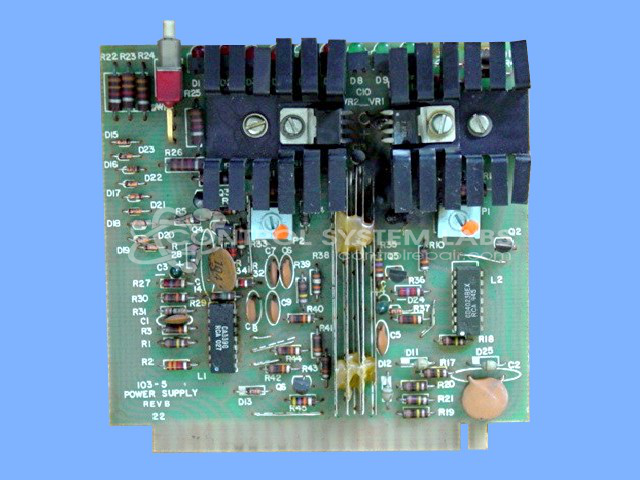

Powertron 103-5 Drivepak DC Drive Power Supply Board

Repair

Repair Price: $ 480.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/53554/image_1920?unique=fbba35b
  • Condition

Purchase Price: $ 0.00 $ 0.00 480.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 34839
Product Overview: A power supply board used within DC motor control drives, it generates and regulates the DC voltage rails (including +/-15VDC) required for drive control circuitry. Commonly found in paper mill machinery and other industrial DC drive systems.
Category: DC Motor Controls
Manufacturer: Powertron
Manufacturer Part Number: 103-5
Also Known As(AKA): CLEVELAND MACHINE

Common Failures

Two issues identified in past repair cases include a short in the +15vDC line and broken solder joints. These faults can affect the performance and reliability of the device.

Repair Approach

The solution for the +15vDC short involved replacing several voltage regulators and capacitors. For broken solder joints, resoldering the affected areas was necessary to restore functionality. Both repair procedures were completed, and the devices were verified to be operating correctly post-repair.

Testing & Quality

All repairs undergo thorough testing to ensure proper operation. Repairs for addressed faults, such as voltage issues and soldering problems, include verification steps confirming that the devices meet operational standards before they are returned.

Service and repair your broken Powertron part


We can repair your Powertron model 103-5 in our facility. Let our skilled technicians get your Powertron back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
