CSL Part Number: 79996

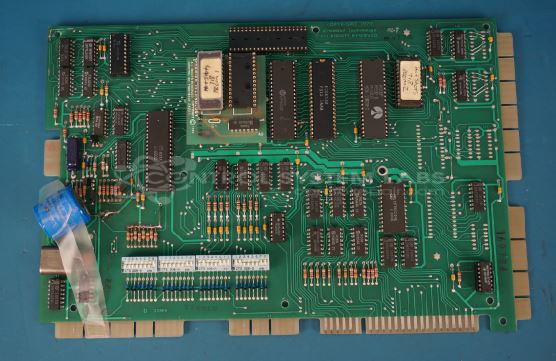

Product Overview: This is a matched pair of control boards from Premier Technology for pinball machines, specifically used in Hotshots video game systems. The pair consists of manufacturer part numbers 20869 and 24221 working together to manage game logic, display control, and player interface functions. These boards feature EPROM-based program storage, battery-backed memory retention, and through-hole component construction typical of arcade and pinball electronics from this era. Common in amusement and entertainment venues.
Category: Control Board
Manufacturer: Premier Technology
Alternate Manufacturer Names: Premier Technology
Manufacturer Part Number: 20869 with 24221
Other Synonyms: Premier Technology
Common Failures
This product commonly experiences issues due to corrosion, particularly linked to leaking rechargeable batteries. Corrosion often affects nearby components and traces, resulting in additional issues if not addressed.
Repair Approach
The typical repair process involves the removal and replacement of corroded components. Damaged circuit traces are repaired, followed by the application of a protective UV mask. Backup batteries are installed when necessary.
Testing & Quality
After repairs, the product undergoes a power-on test to verify functionality. For additional assurance, a burn-in test is performed for one hour without load. These steps help verify that the product meets operational standards before returning to the customer.
Repair your broken Premier Technology part
We can repair your Premier Technology model 20869 with 24221 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
